4-axis CNC routers with a swivel or rotary axis for angled faces, side walls and cylinders in one setup. $21,600 – $40,100 typical factory range.
A 4-axis CNC router adds a swivel or rotary axis so the spindle reaches angled faces, side walls, undercuts and cylinders a flat 3-axis nest cannot finish in one clamp. Furniture arms, mouldings, lock-face pockets, yacht plugs and shaped joinery are the usual parts.
The fourth axis is typically a swivelling spindle on the head (A/C-axis), not a second simultaneous rotary like 5-axis. Export 1325 cells often run Syntec keypad CNC, closed-loop AC servos and a rear linear ATC magazine so roughing and finishing bits change without leaving the table.
Flat multi-tool sheet work stays on ATC CNC routers; full-sheet kitchen nests on cabinet CNC routers. Step up to 5-axis CNC routers only when the head must tilt on two rotary axes at once.
1 model
$21,600 – $40,100

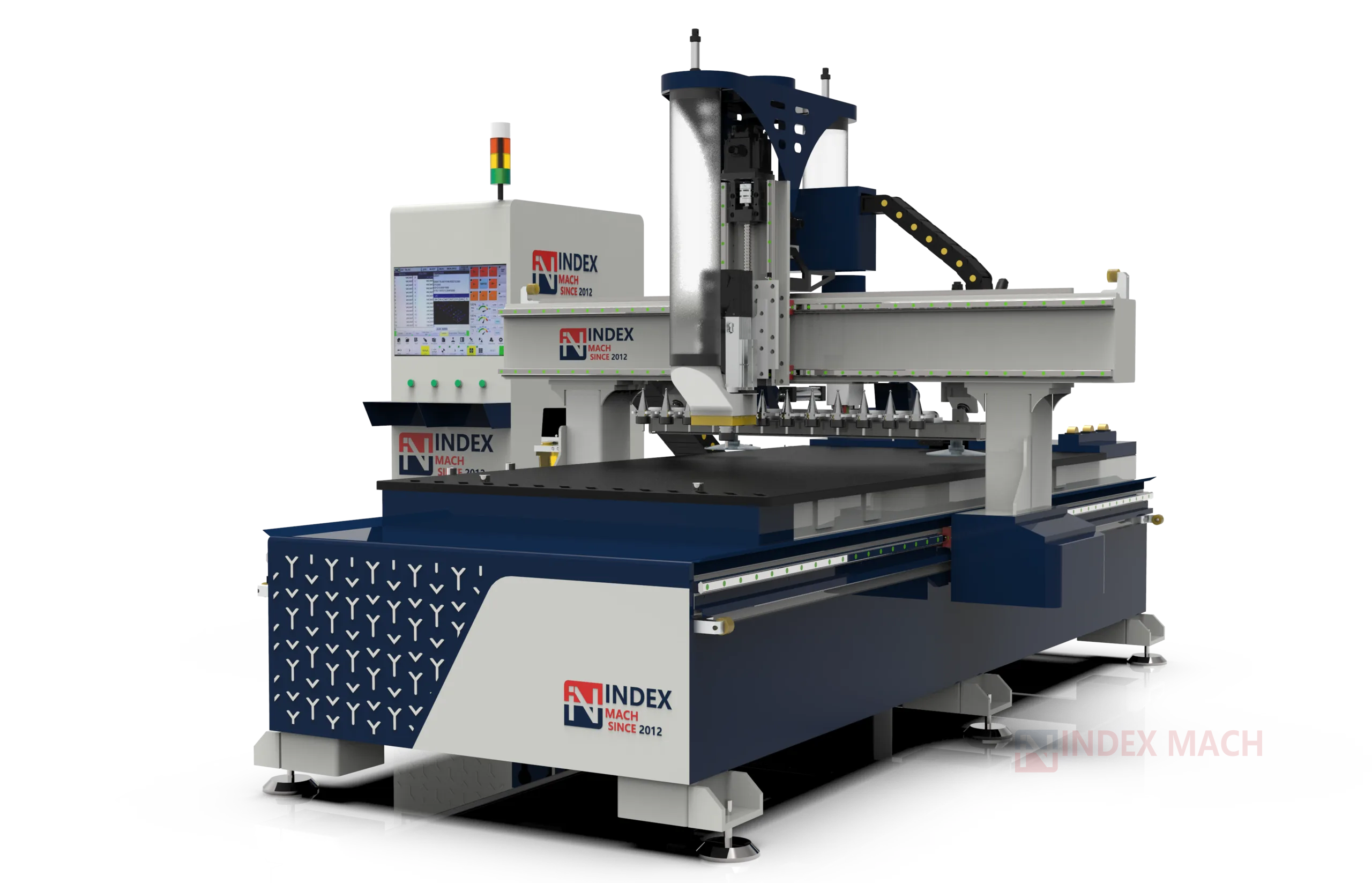

IMCR-4A1325 is our 1325 4-axis CNC with a swivelling spindle for angled and side-face work on a 1300×2500 table.
Product details
$21,600 – $40,100 typical factory range
A 4-axis CNC router keeps the part in one clamp while the spindle swivels to reach angled faces, side walls and undercuts. That is the usual step when flipping the workpiece onto a second fixture costs more than the cut itself — furniture arms, mold plugs, stile lock pockets and shaped joinery.
The current 1325 machine in this series is the IMCR-4A1325, a 4×8 cell with a swivelling ATC spindle and a rear linear 12-tool magazine. Further models keep the same 4th-axis idea on other bed sizes.
| Parameter | Value |
|---|---|
| Working Area | 1300 × 2500 mm (4×8 ft sheet) |
| Max. Workpiece Height | 600 mm (23.6 in) |
| Spindle Type | Air-cooled Automatic Tool Changer Spindle |
| Spindle Power | 9 kW (12.1 hp) |
| Spindle Speed | 0 - 24,000 rpm |
| Tool Magazine Type | Rear linear ATC |
| Tool Capacity | 12 PC |
| Control System | Syntec |
| Drive Motors & Servos | Delta AC Servo Motors & Drives |
| Vacuum Zones | Zoned vacuum table |
| Operating Voltage | 380V / 3 Phase, 50/60Hz (Optional 220V/480V) |
| Applications | Furniture / millwork / Marine / composites molds / Doors / cabinet frames |
| Materials | Solid wood / MDF / engineered board / PU foam / epoxy tooling board |
Values are the unique figures from the catalog models in this family. A single machine page has that build's exact sheet.
This series owns the swivel / rotary 4th axis — not the family CNC router overview, and not simultaneous dual-rotary 5-axis.
Buy this series if parts need angled or side-face machining in one setup: millwork and furniture, marine and composite molds, door lock and hardware holes on the stile, stairs and cylinders.
Do not start here if almost every week is flat multi-tool sheet work — that is ATC CNC routers. Kitchen and wardrobe carcass nests stay on cabinet CNC routers. True simultaneous multi-face curves that need two rotary axes belong on 5-axis CNC routers.
5-axis CNC routers tilt the head on two rotary axes plus X/Y/Z. This series uses one rotary (swivel head or table rotary). If CAM only needs A-axis tilt for side walls and molds, stay here — do not buy 5-axis for a 4-axis job.
Send typical parts (photos or STEP), material, whether the 4th axis is head-swivel or table-rotary, tool list, and plant voltage. Request a quote, or browse installed machines.
