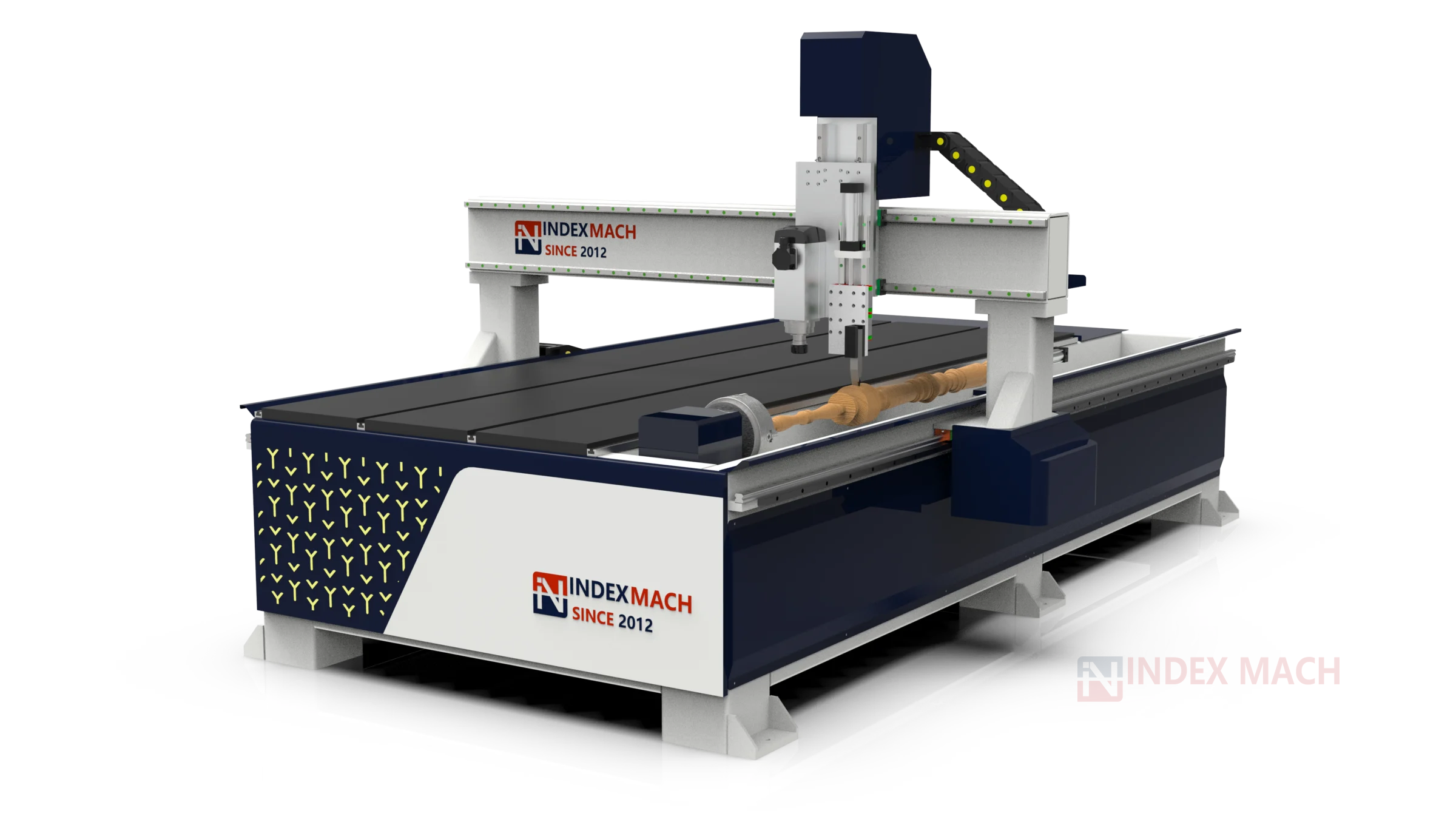

IMCR-WL1325
$12,800 – $23,600
- Max. Turning Length 2500 mm (98.4 in)
- Max. Turning Diameter 300 mm (11.8 in)
IMCR-WL1325 pairs a flat CNC table with a rotary axis — nest/engrave and turn on one machine.
Product Catalog
CNC Woodworking Lathes
CNC wood turning lathes for stair posts, table legs, balusters and turned components. $12,800 – $23,600 typical factory range.
How a CNC wood lathe turns a blank
A CNC woodworking lathe spins the blank while cutters follow a programmed profile. Stair posts, newels, balusters, table and chair legs come off identical from one program. Optional milling and broaching units add flutes, facets or mortises in the same clamp.
Stair, furniture and joinery shops are the usual buyers. Blanks are often sized first on a sliding table saw. Panel carcass work stays on a CNC router; turning is for round stock.
Machines are commonly specified by blank diameter and length, number of axes, servo drives, and whether a milling or broaching unit is fitted. Voltage follows the plant (220/380 V).
Send blank size, profile complexity and pieces per day — we match a single-axis, multi-axis or turning-plus-milling layout.
What CNC wood lathes do
Automated wood turning
CNC lathes turn blanks to a programmed profile for identical parts run after run. Replace this placeholder with a real machine photo when available.
4 models
IMWL-MA
- Max. Turning Length 1500 - 3000 mm
- Max. Turning Diameter 150 mm
IMWL-MA is our multi-axis CNC wood lathe for more complex turned furniture parts.
IMWL-SA
- Max. Turning Length 1500 - 3000 mm
- Max. Turning Diameter 150 mm
IMWL-SA is our single-axis CNC wood lathe for straightforward stair posts and legs.
IMWL-TM
- Max. Turning Length 1500 - 3000 mm
- Max. Turning Diameter 150 mm
IMWL-TM turns and mills in one setup — flutes and facets without a second machine.
Product details
CNC Woodworking Lathes
$12,800 – $23,600 typical factory range
What CNC wood lathes turn
These machines turn stair posts, newels, balusters, table and chair legs to a programmed profile. They are not CNC routers: routers nest and mill panels; lathes rotate a blank against the cutter. Add milling and broaching when the same part needs flutes, facets or mortises.
Beside the rest of the shop
Turned components often sit next to panel work: carcasses and doors on a CNC router, round parts here. Stair and furniture shops also use sliding table saws to size blanks before turning.
Tell us blank size and profile
Send blank diameter and length, profile complexity, and pieces per day. Request a layout and quote, or browse installed machines.
CNC Woodworking Lathes Technical Specifications
| Parameter | Value |
|---|---|
| Max. Turning Length | 2500 mm (98.4 in) |
| Max. Turning Diameter | 300 mm (11.8 in) |
| Spindle Speed | 0 - 24,000 rpm |
| Rotary Speed | 0 - 120 rpm |
| Spindle Power | 5.5 - 9 kW (7.4 -12.1 hp) |
| Control System | Syntec / DSP |
| Drive & Motor | Yaskawa AC Servo |
| Working Voltage | AC 380V, 3-Phase, 50Hz/60Hz (Customizable) |
| Working Area | 1300 × 2500 mm (51.2 ×98.4 in) |
| Chuck & Tailstock | Servo chuck with adjustable tailstock |
| Applications | Stair parts / Seating / tables |
| Materials | Solid wood / Hardwood / softwood |
Values are the unique figures from the catalog models in this family. A single machine page has that build's exact sheet.
