IMEB-A-T7
$7,800 – $27,600
- Glue Type EVA / PUR
IMEB-A-T7 is our 7-station automatic edgebander for straight PVC/ABS edges — pre-mill through buff, EVA or PUR, export 380V wiring.
Product Catalog
Edge Banding Machines
Edgebanders from compact manual units to automatic through-feed lines — PVC, ABS, EVA and PUR. $6,600 – $38,400 typical factory range.
How an edge banding machine finishes a panel
An edge banding machine glues tape onto a prepared panel edge, then end-trims, fine-trims, scrapes and buffs in sequence. Tape is typically PVC, ABS, melamine, veneer or acrylic; glue is EVA for everyday furniture or PUR for kitchens and wet rooms. The panel is already cut to size before it reaches the bander.
Cabinet, wardrobe, door and shopfitting plants are the usual buyers. Straight carcass edges run all day on through-feed lines; shaped fronts, chamfers, J-pull profiles and long frames need dedicated stations.
Automatic machines are commonly specified with pre-milling, a glue pot or PUR slot, top and bottom trimmers, scrapers and buffing units, and 380 V three-phase wiring (220 V where the plant requires it). Compact shops use a smaller footprint and fewer stations.
High-volume straight edges run on automatic edge banding machines. Short runs and tight floors use manual and compact edge banders. Chamfers use bevel edge banding; curves contour and curved edge banders; J-pull fronts handleless profile edge banders; jambs and leaves door and window frame edge banders.
What edge banders do
High-gloss panel edge finishing
Gloss board edges sealed and polished free of scratches — clean premium finish for high-end cabinet doors and luxury custom furniture.
Straight-edge panel finishing
Raw board edges wrapped, trimmed and sealed against moisture and wear — the standard pass on cabinet, wardrobe and door-panel lines.
How an automatic edgebander finishes a straight edge
An automatic edge banding machine feeds the panel through pre-milling, gluing, end-trim, fine trim, scrape and buff in one pass. Straight cabinet, wardrobe and worktop edges are the usual work. EVA or PUR glue, PVC/ABS tape, and 380 V three-phase wiring are common export specs.
Choose bevel edge banding or contour edge banders when the edge is chamfered or curved.
How a compact edgebander runs short jobs
Manual and compact edge banders glue and trim tape on a small footprint. Short runs, bespoke parts and some curves are the usual work. EVA glue and simple station layouts keep setup fast.
Move to an automatic edge banding machine when straight edges run all day.
IMEB-M
$12,400 – $38,400
- Glue Type EVA / PUR
IMEB-M is our compact/manual edgebander for small shops and occasional PVC edging — not a through-feed T7 line.
How a bevel edgebander tapes a chamfer
A bevel edge banding machine sets trimmers and scrapers to the chamfer angle so tape sits clean on 45° and decorative fronts. Doors and colour-matched panels are the usual work. EVA or PUR follows the same glue choice as a straight line.
Straight carcass edges stay on an automatic edge banding machine.
IMEB-BV
$6,600 – $30,100
- Glue Type EVA / PUR
IMEB-BV is our bevel edgebander for chamfered and 45° panel edges — colour-matched tape on the incline.
How a contour edgebander follows a curve
A contour edge banding machine tracks radiused and irregular panels so tape feeds evenly around the shape. Curved cabinet parts, tables and worktops are the usual work.
Straight kitchen boxes stay on automatic edge banding machines. J-pull profiles use handleless profile edge banders.
IMEB-C
$9,900 – $34,800
- Glue Type EVA / PUR
IMEB-C is our contour edgebander for curved and irregular panel edges.
How a handleless edgebander finishes a J-pull
A handleless / J-pull edge banding machine tapes grooved grip profiles on kitchen fronts. The stations follow the J or groove instead of a flat 18 mm edge. PUR is common on premium fronts.
Standard carcass edges stay on the automatic edge banding line.
IMEB-HL
$9,500 – $26,400
- Glue Type EVA / PUR
IMEB-HL is our handleless / J-pull profile edgebander for grooved kitchen fronts.

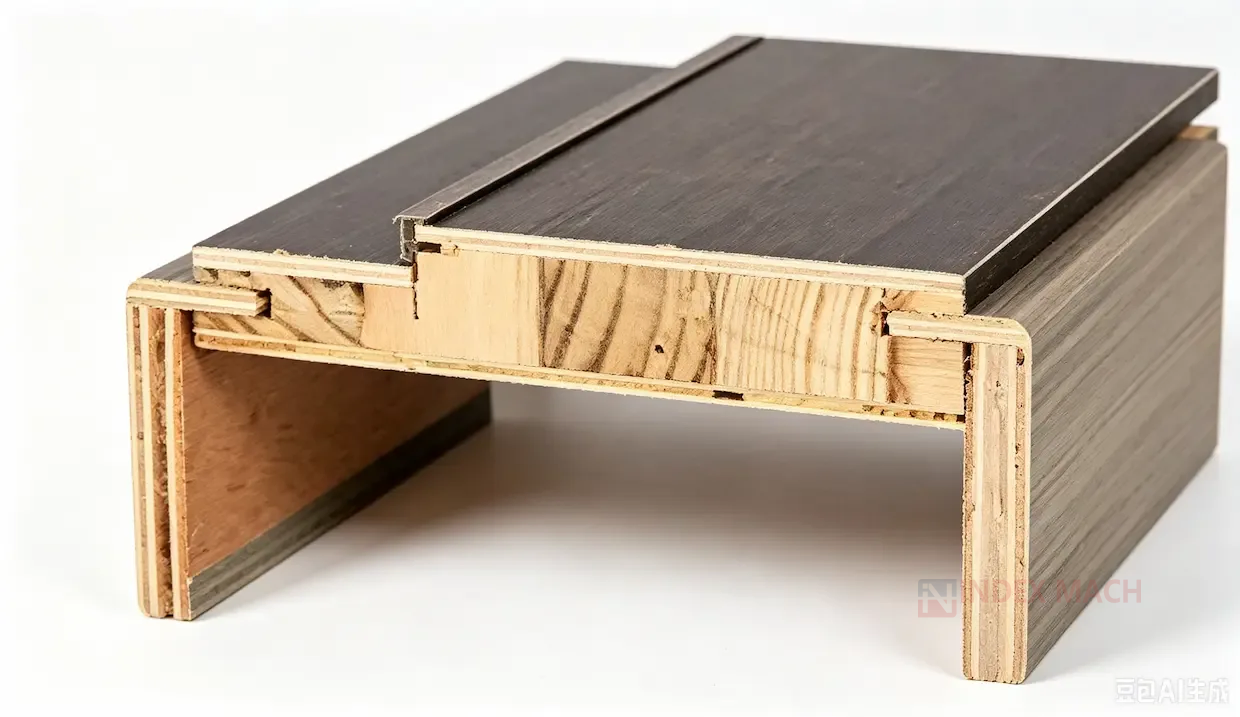

How a frame edgebander runs jambs and leaves
A door and window frame edge banding machine supports long, profiled leaves, jambs and casings so tape stays even along the length. Door plants and window shops are the usual buyers.
Flat cabinet panels stay on automatic edge banding machines.
IMEB-WD
$11,000 – $31,900
- Glue Type EVA / PUR
IMEB-WD is our door and window frame edgebander for jambs, casings and door leaves.
How a custom edgebander is built around a part
A custom edge banding machine is laid out around a specific profile: step-joint hidden doors, unusual stations or materials outside the catalogue. Unit selection, length and glue system follow the part drawing.
Catalogue straight, chamfer and curve work stays on automatic, bevel or contour machines.
IMEB-CS
$9,300 – $30,000
- Glue Type EVA / PUR
IMEB-CS is our engineered-to-order edgebander for special geometries and non-standard station layouts.
Product details
Edge Banding Machines
$6,600 – $38,400 typical factory range
What edge banding is for
Edge banders finish raw panel edges with PVC, ABS, melamine, veneer or acrylic tape, then trim, scrape and buff. High-volume straight edges belong on an automatic edge banding machine; small shops or occasional runs start with a manual or compact bander. Shaped fronts, J-pull kitchens and door frames use the dedicated bevel, contour, handleless and frame series.
Where it sits on the furniture line
Edging follows cut-to-size and CNC machining: sheets are typically sized on a computer panel saw, nested or drilled on a CNC router, then edged here. For a balanced layout see cabinet and panel furniture production lines.
Tell us your tape and output
Send tape material and thickness, EVA or PUR, straight vs shaped edges, and daily output. Request a layout and quote, or browse installed machines.
Edge Banding Machines Technical Specifications
| Parameter | Value |
|---|---|
| Panel Thickness | 10 - 60 mm (0.39 -2.36 in) |
| Edge Band Thickness | 0.4 - 3 mm (0.016 -0.118 in) |
| Glue Type | EVA / PUR |
| Processing Stations | 4 / 5 / 6 / 7 |
| Feeding Speed | 18 - 23 m/min (59 -75 ft/min) |
| Total Power | ≈ 12 kW (≈ 16.1 hp) |
| Applications | Kitchen / wardrobe cabinets / Panel furniture / Decorative panels / furniture / Cabinet fronts / Shaped cabinet doors / Custom millwork / Special furniture / OEM / project work / Handleless kitchens / Wardrobes / kitchens / Joinery shops / Workshop / aftersales / Doors / windows / Joinery |
| Materials | Particleboard / MDF with PVC / ABS / Melamine / laminated board / MDF / acrylic / plywood / Wood-based panels / As specified / Specified by the line / Panel offcuts / custom parts / Solid wood / engineered frames / Timber / MDF frames |
Values are the unique figures from the catalog models in this family. A single machine page has that build's exact sheet.
