5-axis CNC routers with a swing head for curved surfaces, moulds and one-setup multi-face parts in wood and composites. $23,000 – $65,000 typical factory range.
A 5-axis CNC router tilts the spindle on two rotary axes plus X/Y/Z, so compound curves and several faces finish in one clamp. Seating shells, automotive and marine plugs, instrument blanks and sculpted millwork are the usual parts — wood, composites and tooling board, not metal gantry moulds.
Export cells typically run a swing-head ATC spindle, Syntec keypad CNC, closed-loop AC servos and a linear tool magazine so roughing and finishing stay on the same program. The flagship table is 1325 (1300×2500 mm / 4×8 ft); the same architecture also ships as 1530 (5×10 ft) / 2030 (~6.5×10 ft) / 2040 (6.5×13 ft) and custom table sizes.
Angled faces that need only one rotary axis stay on 4-axis CNC routers. Flat multi-tool sheet work stays on ATC CNC routers; kitchen nests on cabinet CNC routers. Steel moulds at gantry scale use gantry CNC milling machines.
1 model
$23,000 – $65,000

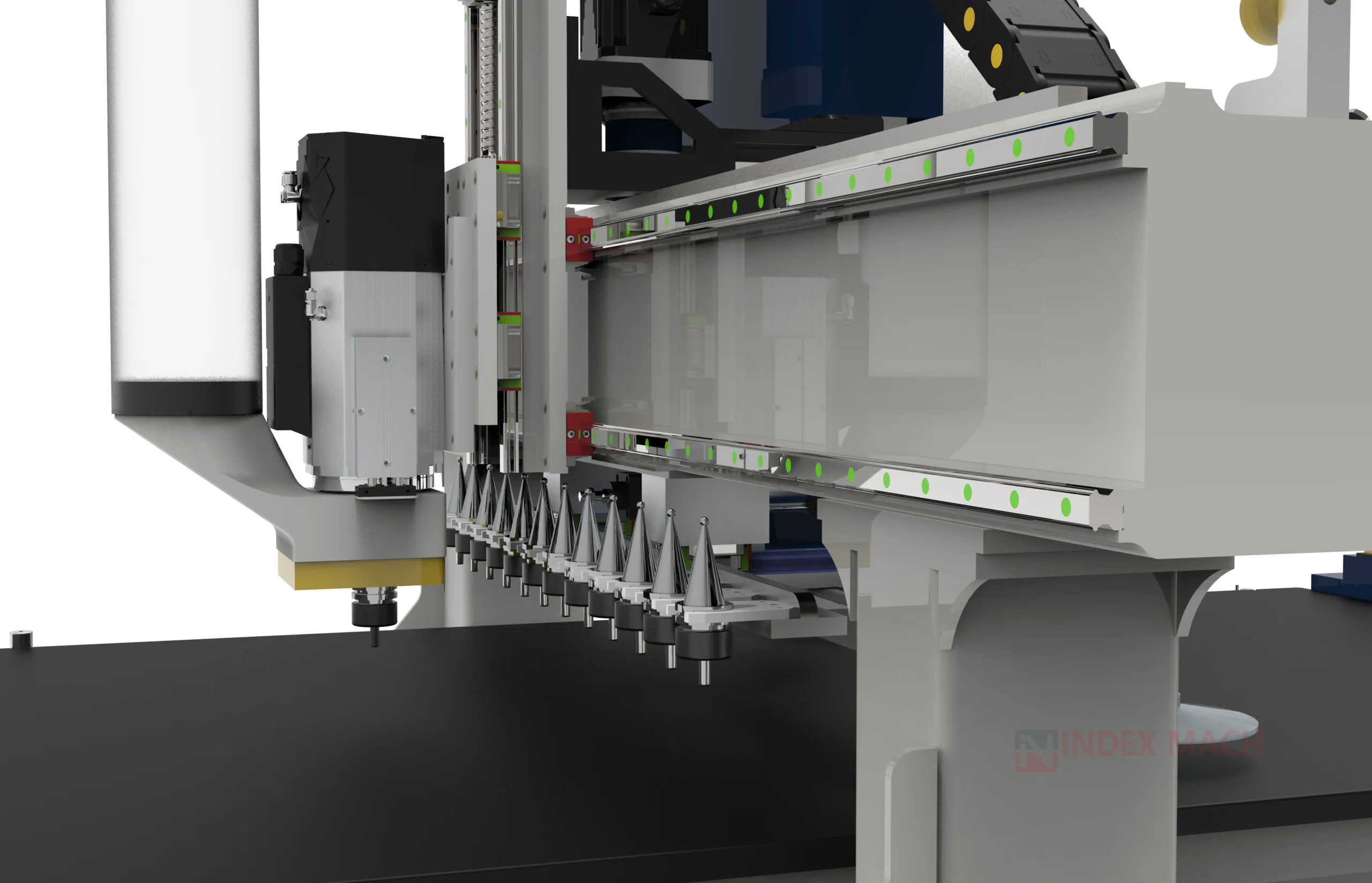

IMCR-5A1325 is IndexMACH’s 1325 (1300×2500 mm / 4×8 ft) swing-head 5-axis CNC router for compound curves, moulds and multi-face wood or composite parts in one clamp — also available as 1530 (5×10 ft) / 2030 (~6.5×10 ft) / 2040 (6.5×13 ft) and custom table sizes.
Product details
$23,000 – $65,000 typical factory range
A 5-axis CNC router keeps the blank in one clamp while the swing head tilts on two rotary axes so the tool stays normal to compound curves and undercuts. That is the usual step when a single A-axis swivel still forces a second fixture — seating shells, car and yacht plugs, instrument blanks and sculpted millwork.
The current 1325 machine in this series is the IMCR-5A1325, a 4×8 cell with a swing-head ATC spindle and Syntec keypad CNC. Further builds keep the same dual-rotary idea on 1530 / 2030 / 2040 and custom table sizes.
| Parameter | Value |
|---|---|
| Working Area | 1300 × 2500 mm (4×8 ft sheet) |
| Max. Workpiece Height | 500 mm (19.7 in) |
| Spindle Type | Air-cooled Automatic Tool Changer Spindle |
| Spindle Power | 9 kW (12.1 hp) |
| Spindle Speed | 0 - 18,000 rpm |
| Tool Magazine Type | Linear ATC |
| Control System | Syntec |
| Drive Motors & Servos | AC servo |
| Vacuum Zones | Zoned vacuum table |
| Operating Voltage | 380V / 3 Phase, 50/60Hz (Optional 220V/480V) |
| Applications | Seating / furniture / Automotive / pattern / composites molds / Marine / instruments / premium millwork |
| Materials | Solid wood / plywood / engineered board / MDF / PU foam / epoxy tooling board / Timber / laminated wood / light composites |
Values are the unique figures from the catalog models in this family. A single machine page has that build's exact sheet.
This series owns simultaneous dual-rotary swing-head work — not the family CNC router overview, and not single-swivel 4-axis.
Buy this series if parts need compound curves or multi-face machining with both rotary axes moving together: seating and curved furniture, automotive and marine plugs, instruments and premium sculpted millwork in wood or light composites.
Do not start here if one swivel is enough for side faces and molds — that is 4-axis CNC routers. Flat multi-tool sheet work belongs on ATC CNC routers. Kitchen and wardrobe carcass nests stay on cabinet CNC routers. Heavy metal moulds need gantry CNC milling.
4-axis CNC routers use one rotary (swivel head or table rotary). This series uses two rotaries plus X/Y/Z. If CAM only needs A-axis tilt for side walls, stay on 4-axis — do not buy 5-axis for a 4-axis job.
Send typical parts (photos or STEP), material, whether CAM already runs simultaneous 5-axis, tool list, target table size, clearance height and plant voltage. Request a quote, or browse installed machines.
