IMEB-BV
Last updated:
IMEB-BV is our bevel edgebander for chamfered and 45° panel edges — colour-matched tape on the incline.
- Panel Thickness
- 10 - 60 mm (0.39 -2.36 in)
- Edge Band Thickness
- 0.4 - 3 mm (0.016 -0.118 in)
- Feeding Speed
- 18 - 23 m/min (59 -75 ft/min)
- Glue Type
- EVA / PUR
- Processing Stations
- 5
- Total Power
- ≈ 12 kW (≈ 16.1 hp)
Comprehensive evaluation aggregated from design engineers, field-service teams, and global user feedback.
- Electrical & Control Professionalism 4.7
Branded controls and electrical components deliver stable, professional-grade operation.
- Mechanical Structural Integrity 4.8
Rigid, well-built structure keeps accuracy stable under continuous production loads.
- Operator Learning Curve 4.6
Straightforward operation and mainstream software compatibility get operators productive quickly.
- Global Component Availability 4.7
Built around mainstream international components that are easy to source worldwide.
- Continuous Production Efficiency 4.7
Designed for low-maintenance, round-the-clock production with minimal downtime.
- Cost-to-Value Proposition 4.8
Export-grade build quality at a competitive price for strong return on investment.
OVERALL PERFORMANCE SCORE 28.3 / 30
IMEB-BV Typical Applications
-

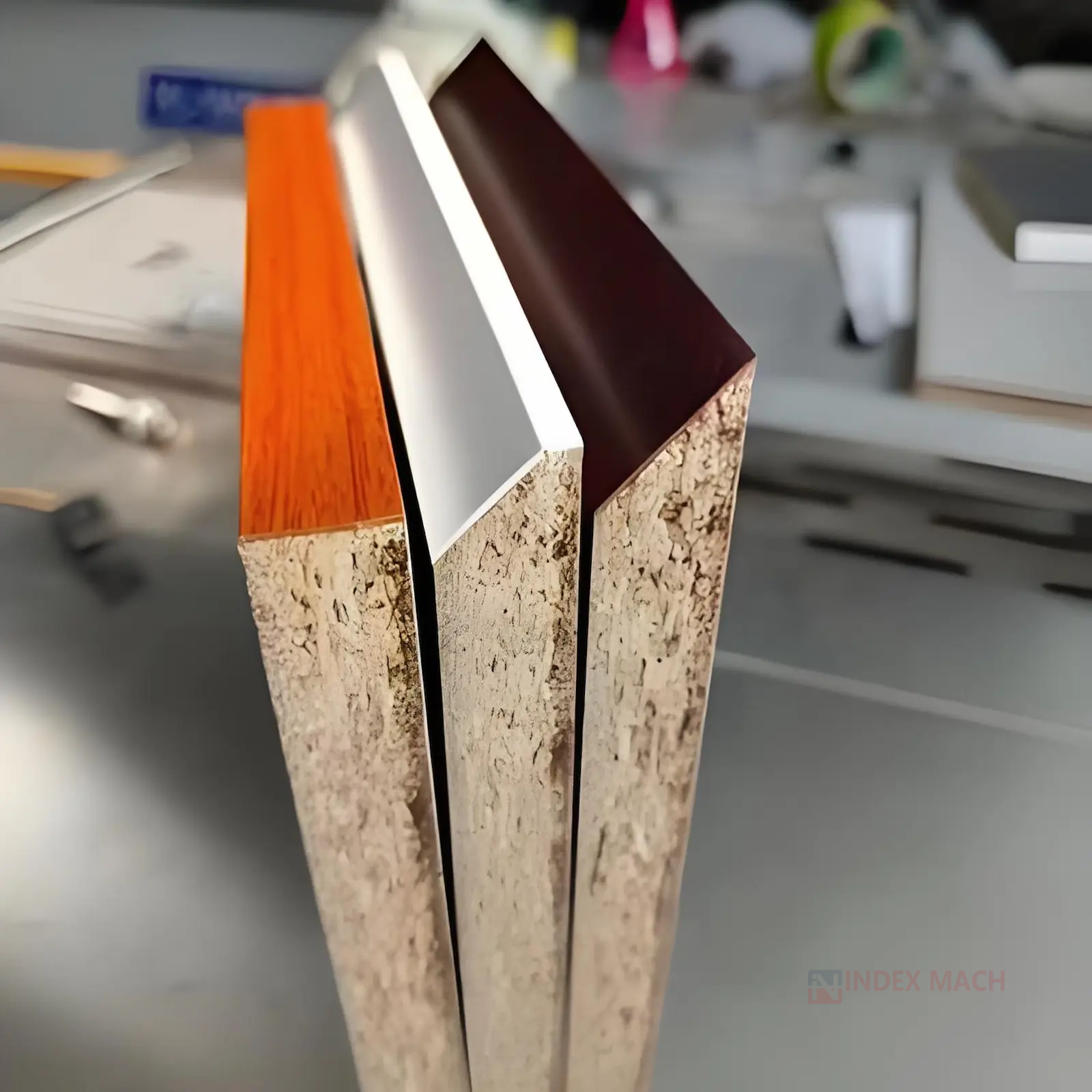

Bevel edge sample Bevel and 45° edges
The IMEB-BV bands bevelled panel edges that a straight 7-station through-feed cannot finish.
- Industry
- Decorative panels / furniture
- Process
- Bevel edge banding
- Materials
- MDF / particleboard
-
Angled door and cabinet fronts
45° and similar bevel fronts for handleless or design doors, not J-pull profiling and not curved contour work.
- Industry
- Cabinet fronts
- Process
- Bevel glue and trim
- Materials
- MDF / acrylic
IMEB-BV Core Components & Features
-
Control System
Industrial-grade CNC controller ensures stable, precise operation with intuitive interface and broad CAD/CAM software compatibility.
- Type
- CNC / PLC
- Interface
- Touch screen + USB
- Compatibility
- G-code, mainstream CAD/CAM
-
Drive & Motor System
High-performance servo drive system delivers accurate positioning, fast response and smooth acceleration for consistent machining quality.
- Drive Type
- AC Servo
- Feedback
- Closed-loop encoder
- Overload Capacity
- 300% peak torque
-
Machine Frame & Build
Heavy-duty welded steel structure with stress-relieved base provides vibration dampening and long-term dimensional stability under production loads.
- Material
- Heavy welded steel
- Treatment
- Stress-relieved, precision-machined
- Stability
- Vibration-dampened base
IMEB-BV Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Panel Thickness | 10 - 60 mm (0.39 -2.36 in) | — |
| Edge Band Thickness | 0.4 - 3 mm (0.016 -0.118 in) | — |
| Glue Type | EVA / PUR | — |
| Processing Stations | 5 | — |
| Feeding Speed | 18 - 23 m/min (59 -75 ft/min) | — |
| Total Power | ≈ 12 kW (≈ 16.1 hp) | — |
Specifications are indicative and vary by configuration. Contact us for the latest data sheet.
The IMEB-BV is the bevel machine in our bevel edge banding series.
Machine Features
- Pre-milling for fine, chip-free glue line
- EVA / PUR glue system with precise temperature control
- End trimming, fine trimming, scraping and buffing in one pass
- 7-inch touch screen with recipe memory
Packing List
- 1 × Bevel Edge Banding Machine main unit (IMEB-BV)
- 1 × control system & operation manual (English)
- 1 × standard tooling & accessory kit
- 1 × set of spare wearing parts
- Export-standard plywood case / film + steel-belt fixing
IMEB-BV Frequently Asked Questions
How much does the Bevel Edge Banding Machine IMEB-BV cost?
Pricing for the Bevel Edge Banding Machine IMEB-BV typically falls in the $6,600 – $30,100 range depending on configuration, tooling and optional accessories. Contact us for a tailored quotation for your production needs.
What is the delivery lead time for the IMEB-BV?
Standard configurations usually ship within 15–30 working days after order confirmation. Customised builds may take longer; our sales team will confirm an exact schedule for your order.
Do you provide installation, commissioning and operator training?
Yes. Our engineers provide layout planning, on-site or remote installation, commissioning and operator training, backed by responsive global after-sales support.
What power supply does the IMEB-BV require?
It runs on AC 380V, 3-phase, 50/60Hz and can be customised to match your local mains supply on request.
What warranty and support are included?
The Bevel Edge Banding Machine IMEB-BV comes with a 12-month limited warranty, plus free lifetime technical support for end-users and dealers.
