Nests a full 4×8 sheet without lifting
We run wardrobe and cabinet carcasses on the IMCR-CB1325 all day. The zoned vacuum holds a 1300×2500 board through cut, drill and groove, and the 9 kW spindle is enough for 18 mm particle board.
IMCR-CB1325
Last updated:
IMCR-CB1325 is 1325 nesting CNC (1300×2500 mm / 4×8 ft) for cabinet and wardrobe sheets. Zoned vacuum table, air-cooled ATC spindle (9 kW), 220/380V export electrics.
- Working Area
- 1300 × 2500 mm (4×8 ft sheet)
- Spindle Power
- 9 kW (12.1 hp)
- Spindle Speed
- 0 - 24,000 rpm
- Max. Workpiece Height
- 200 mm (7.9 in)
- Spindle Type
- Air-Cooled Automatic Tool Changer Spindle
- Tool Magazine Type
- Linear ATC

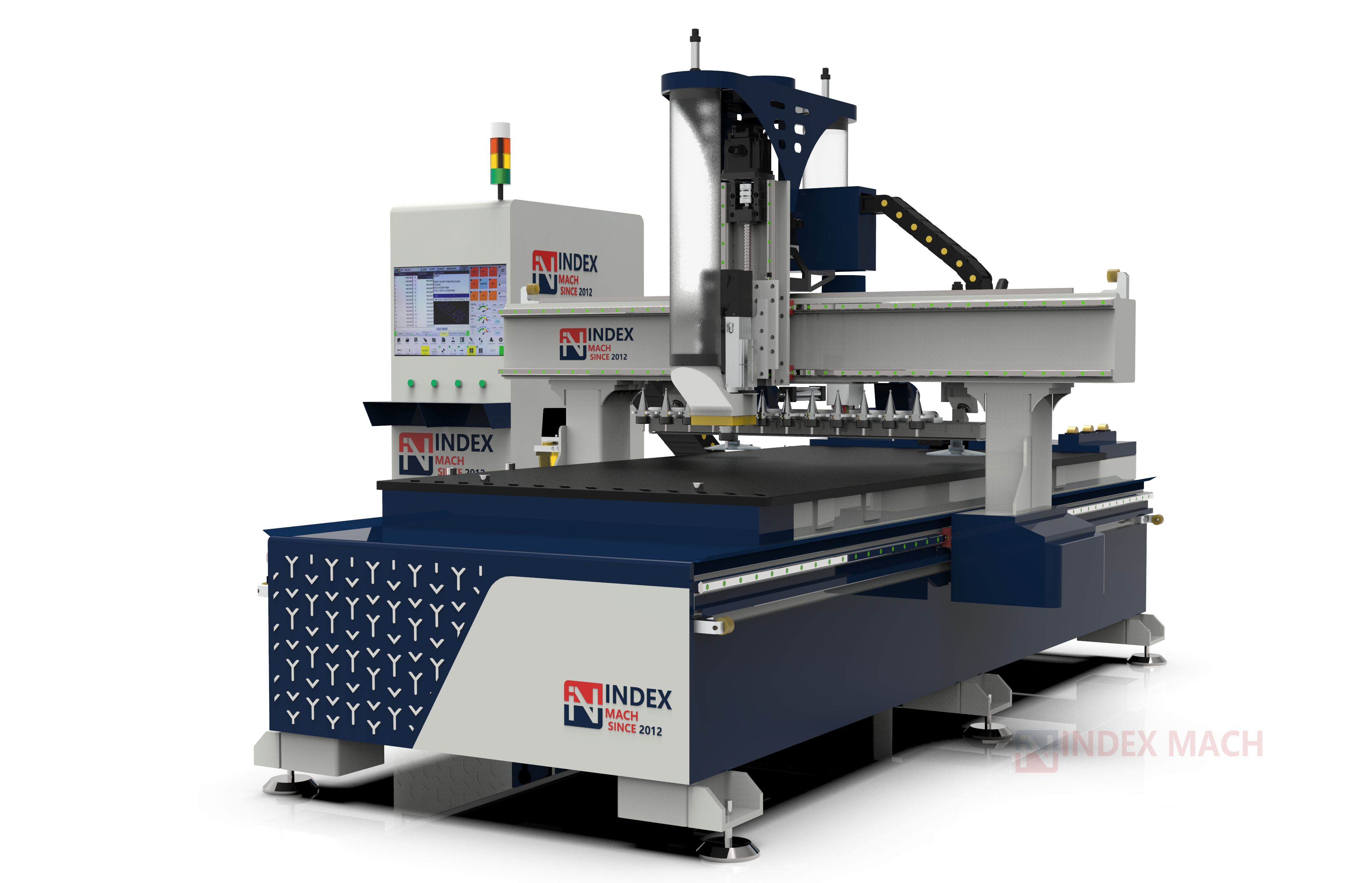

IMCR-CB1325 4x8 Nesting CNC Router with vacuum table — Main Front View
Comprehensive evaluation aggregated from design engineers, field-service teams, and global user feedback.
- Electrical & Control Professionalism 4.7
Branded controls and electrical components deliver stable, professional-grade operation.
- Mechanical Structural Integrity 4.8
Rigid, well-built structure keeps accuracy stable under continuous production loads.
- Operator Learning Curve 4.6
Straightforward operation and mainstream software compatibility get operators productive quickly.
- Global Component Availability 4.7
Built around mainstream international components that are easy to source worldwide.
- Continuous Production Efficiency 4.7
Designed for low-maintenance, round-the-clock production with minimal downtime.
- Cost-to-Value Proposition 4.8
Export-grade build quality at a competitive price for strong return on investment.
OVERALL PERFORMANCE SCORE 28.3 / 30
IMCR-CB1325 Typical Applications
-
Kitchen carcass nest Cabinet carcass nesting
The IMCR-CB1325 is a 4×8 nesting cell: zoned vacuum holds a kitchen or wardrobe carcass sheet while the ATC spindle cuts, drills and grooves the box parts in one layout. Typical stock is 12–25 mm particleboard and MDF. This model is not a carving cell, not a 5-axis mill, and not a lock-hole mortiser.
- Industry
- Kitchen / wardrobe cabinets
- Process
- Sheet nesting
- Materials
- Particleboard / MDF
-
Nested cabinet parts Panel furniture parts
Flat panel parts for export furniture nest on the 1300×2500 table — cut, drill and groove from one program. Stay on this 1325 for standard 4×8 sheets. Oversized boards need a larger bed in the same cabinet CNC router series; advertising plastics and multi-tool door programs belong on ATC CNC routers, not this carcass machine.
- Industry
- Panel furniture
- Process
- Cut, drill, groove
- Materials
- Particleboard / plywood
IMCR-CB1325 Core Components & Features
-
Control System
Industrial-grade CNC controller ensures stable, precise operation with intuitive interface and broad CAD/CAM software compatibility.
- Compatibility
- G-code, mainstream CAD/CAM
-
Drive & Motor System
High-performance servo drive system delivers accurate positioning, fast response and smooth acceleration for consistent machining quality.
- Drive Type
- AC Servo
- Feedback
- Closed-loop encoder
- Overload Capacity
- 300% peak torque
-
Machine Frame & Build
Heavy-duty welded steel structure with stress-relieved base provides vibration dampening and long-term dimensional stability under production loads.
- Material
- Heavy welded steel
- Treatment
- Stress-relieved, precision-machined
- Stability
- Vibration-dampened base
IMCR-CB1325 Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Working Area | 1300 × 2500 mm (4×8 ft sheet) | Bed size for a standard 4×8 ft panel. Specify 1530 / 2040 for 5×10 or oversized boards. |
| Max. Workpiece Height | 200 mm (7.9 in) | Maximum sheet / workpiece height the gantry can accept. |
| Spindle Type | Air-Cooled Automatic Tool Changer Spindle | The top of the spindle is equipped with a high-performance cooling fan and a specialized aluminum alloy housing designed for airflow guidance and heat dissipation; this setup ensures efficient convective circulation, significantly reduces temperature rise during continuous high-speed heavy-duty cutting, and guarantees long-term stable operation. |
| Spindle Power | 9 kW (12.1 hp) | In industrial CNC woodworking and routing, an ATC (Automatic Tool Changer) spindle operating at 9 kW and 24,000 RPM is a common standard high-performance configuration for fast cutting and smooth finishes. |
| Spindle Speed | 0 - 24,000 rpm | Featuring smooth, burr-free cut edges and support for high-feed-rate nesting, the 24,000 RPM high-speed spindle significantly boosts both processing efficiency and finished product quality for cabinet CNC routers. |
| Tool Magazine Type | Linear ATC | Fast tool change time (< 8 seconds) for uninterrupted cabinet cutting, drilling, and routing. |
| Tool Capacity | 12 PC | A 16-tool capacity magazine is available for 4x9 ft and larger sheet processing models, though a 12-tool magazine fully satisfies standard processing requirements. |
| Tool Holder | ISO30 | — |
| Collet Type | ER32 | — |
| Tool Setter | Automatic | Automatic tool-length measurement before the program. |
| Control System | LNC | Standard LNC industrial PC. Optional: Syntec, Delta or Weihong. We match the post-processor to your CAM. |
| Drive Motors & Servos | Delta AC Servo Motors & Drives (Standard) | Delta AC Servo System with Incremental Encoders (Standard) — Closed-loop control prevents step loss under heavy loads; optional Yaskawa, Panasonic, or Leadshine servos, with absolute encoders available for power-off position memory and homing-free operation. |
| Transmission | X/Y rack and pinion, Z ball screw | — |
| Lubrication System | Automatic | Standard automatic oiling. Conventional engraving routers typically ship with a manual oil pump. |
| Positioning Accuracy | ±0.03 mm (±0.001 in) | Axis positioning tolerance — each programmed X/Y point for cut-out, hinge/dowel/cam boring and back grooving stays within this band on a 4×8 nest. |
| Max. Rapid Travel Speed | 60 - 80 m/min (197 -262 ft/min) | High-speed axis movement reduces non-cutting time between nesting jobs. |
| Max. Working Speed | 20 - 25 m/min (66 -82 ft/min) | Optimized feed rate for clean cuts and smooth edge finishing on MDF and particle board. |
| Vacuum Zones | 6 - 8 Zoned Matrix Table | Independently controlled solenoid valves allow air concentration on smaller or custom-sized panels. |
| Vacuum Pump Power | 7.5 KW (10.1 hp) | Delivers strong hold-down force (≥ -0.08 MPa) to prevent small parts from shifting during high-speed routing. |
| Dust Collector Power | 5.5 kW (7.4 hp) | — |
| Panel Positioning | Pneumatic locating cylinders | Squares the sheet quickly and repeatably on the vacuum table — keeps front/back and second-pass work in register, cuts operator handling, and lines up with automatic loading and unloading. |
| Operating Voltage | 380V / 3 Phase, 50/60Hz (Optional 220V/480V) | Customizable power configuration to match regional industrial standards in North America, Europe, etc. |
| Air Pressure Required | 0.6 - 0.8 MPa (87 -116 psi) | — |
| Overall Dimensions | 3540 × 2900 × 2170 mm (139.4 ×114.2 ×85.4 in) | Installed L × W × H of the machine. |
Specifications are indicative and vary by configuration. Contact us for the latest data sheet.
The IMCR-CB1325 is the 1325 (1300 × 2500 mm) nesting CNC in our cabinet CNC router series — a 4×8 vacuum-table cell with an air-cooled ATC spindle for MDF and particleboard in cabinet plants.
Is the IMCR-CB1325 right for this shop?
Yes if most days you nest 4×8 kitchen, wardrobe or export furniture sheets and want cut, drill and groove on one vacuum table. That is the job this CNC router model is built for.
No if the daily job is acrylic signs, relief carving, or 5-axis letters — those belong on ATC CNC routers or a 5-axis CNC router. If you already buy 5×10 sheets, ask for a larger bed in the same cabinet series rather than forcing them onto this 1325.
Machine Features
- Heavy welded steel frame for stable high-speed machining
- Vacuum table with zoned suction for nesting
- Air-cooled ATC: the magazine changes tools mid-program (cut, drill, groove)
- Compatible with mainstream CAD/CAM software
- Auto lubrication for low maintenance
Packing List
- 1 × Cabinet CNC Router main unit (IMCR-CB1325)
- 1 × control system & operation manual (English)
- 1 × standard tooling & accessory kit
- 1 × set of spare wearing parts
- Export-standard plywood case / film + steel-belt fixing
IMCR-CB1325 Frequently Asked Questions
How much does the IMCR-CB1325 cost?
Pricing for the IMCR-CB1325 typically falls in the $10,300 – $18,500 range depending on configuration, tooling and optional accessories. Contact us for a tailored quotation for your production needs.
What is the delivery lead time for the IMCR-CB1325?
Standard configurations usually ship within 15–30 working days after order confirmation. Customised builds may take longer; our sales team will confirm an exact schedule for your order.
Do you provide installation, commissioning and operator training?
Yes. Our engineers provide layout planning, on-site or remote installation, commissioning and operator training, backed by responsive global after-sales support.
What power supply does the IMCR-CB1325 require?
It runs on AC 380V, 3-phase, 50/60Hz and can be customised to match your local mains supply on request.
What warranty and support are included?
The Cabinet CNC Router IMCR-CB1325 comes with a 12-month limited warranty, plus free lifetime technical support for end-users and dealers.
Is the IMCR-CB1325 a carving or 5-axis machine?
No. This model is a 4×8 nesting cell for cabinet and wardrobe sheets. Carving and multi-face work belong on a 5-axis CNC router. Multi-tool sign and door programs belong on ATC CNC routers.
What sheet thickness does the IMCR-CB1325 run?
Typical cabinet stock is 12–25 mm MDF, particleboard, plywood and laminated board. The gantry accepts up to 200 mm workpiece height, but vacuum hold-down needs a sealed sheet. Unsealed solid-wood slabs need a different table.
Which CAD/CAM software works with the IMCR-CB1325?
It accepts standard G-code from Cabinet Vision, Alphacam, Vectric and similar nesting posts. We match the post-processor at commissioning.
When should I buy a larger bed or an ATC CNC instead?
Stay on this 1325 if you nest standard 4×8 cabinet sheets. Step to 1530 / 2030 / 2040 in the same cabinet CNC router series when you run 5×10 or oversized boards. Look at ATC CNC routers when the main job is signs, doors or mixed tool lists — not full-sheet kitchen nesting.
