IMCR-WL1325
Last updated:
IMCR-WL1325 pairs a flat CNC table with a rotary axis — nest/engrave and turn on one machine.
- Max. Turning Length
- 2500 mm (98.4 in)
- Max. Turning Diameter
- 300 mm (11.8 in)
- Spindle Power
- 5.5 - 9 kW (7.4 -12.1 hp)
- Spindle Speed
- 0 - 24,000 rpm
- Rotary Speed
- 0 - 120 rpm
- Control System
- Syntec / DSP

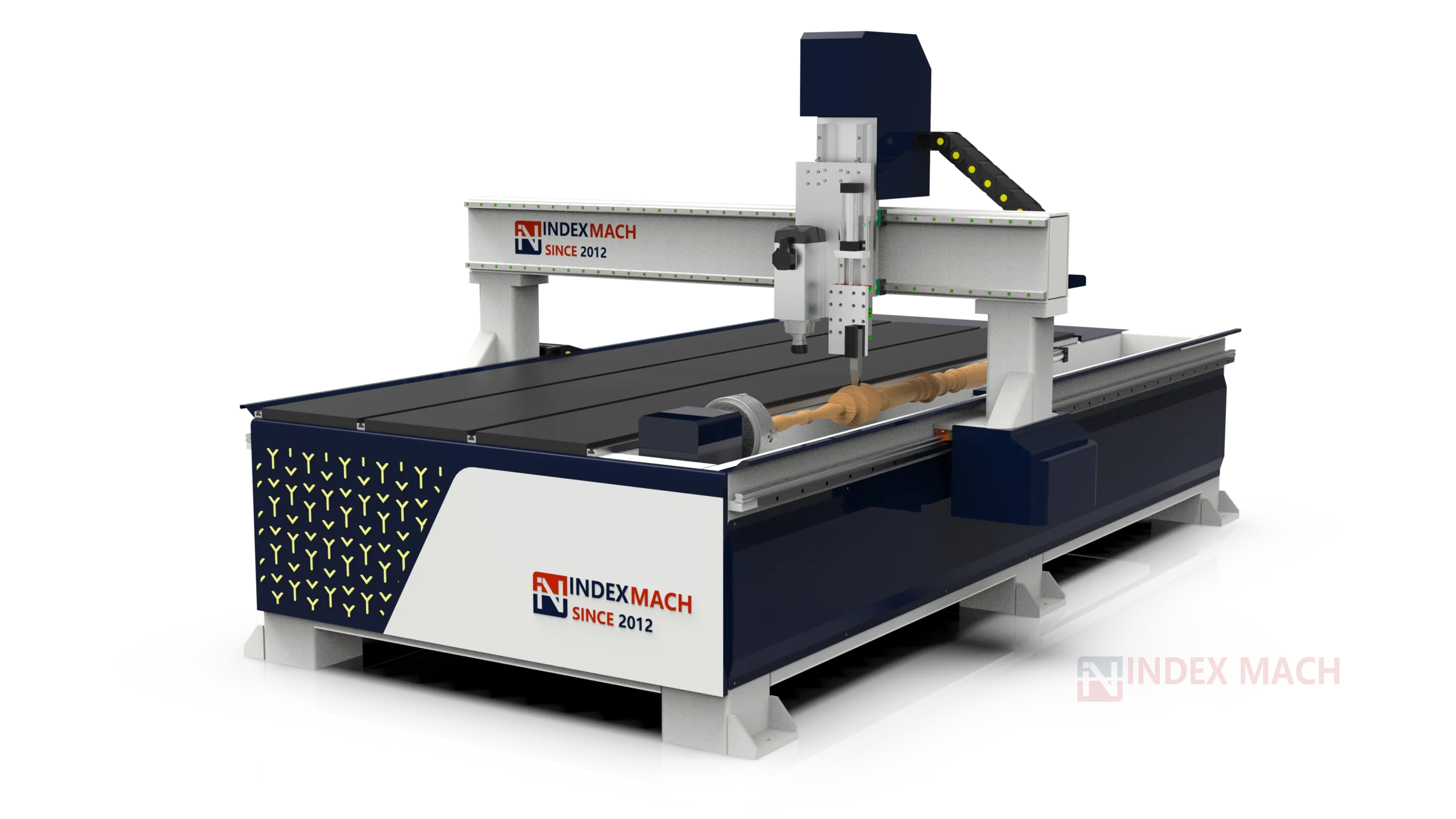

Front view — flat-table router with side-mounted rotary turning axis
Comprehensive evaluation aggregated from design engineers, field-service teams, and global user feedback.
- Electrical & Control Professionalism 4.8
Syntec/DSP control with branded servo drives coordinates the gantry and the rotary 4th axis for stable multi-process motion.
- Mechanical Structural Integrity 4.9
Heavy welded steel frame and HIWIN linear rails keep accuracy stable under high-speed routing and turning loads.
- Operator Learning Curve 4.5
One familiar CAD/CAM workflow drives both flat routing and rotary turning, so operators pick it up quickly.
- Global Component Availability 4.7
Built around mainstream Taiwanese/Japanese components that are easy to source worldwide.
- Continuous Production Efficiency 4.8
Turning and routing in one setup removes a second machine and part re-clamping, cutting cycle time.
- Cost-to-Value Proposition 4.9
Two machines' capability in one export-grade build for high return on investment.
OVERALL PERFORMANCE SCORE 28.6 / 30
IMCR-WL1325 Typical Applications
-

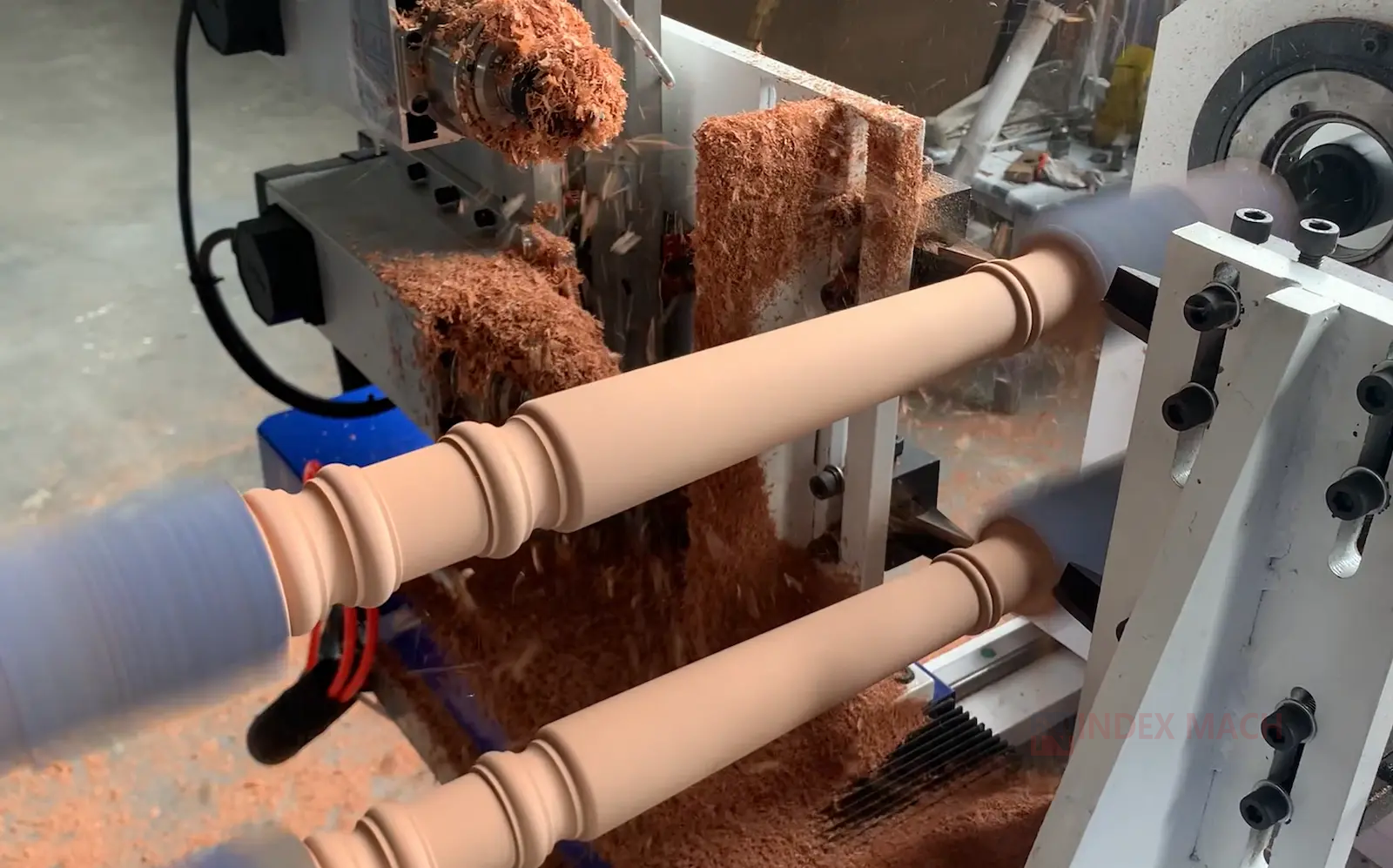

Stair post turning Stair posts and balusters
The side-mounted rotary axis turns newels, posts and balusters between centres while the same 1325 gantry can still nest panels on the flat table.
- Industry
- Stair parts
- Process
- Rotary turning
- Materials
- Solid wood
-
Table and chair legs
Turned legs and spindles are why this combo exists: one program can nest the seat blank on the table and turn the legs on the rotary axis.
- Industry
- Seating / tables
- Process
- Turn + nest
- Materials
- Hardwood / softwood
IMCR-WL1325 Core Components & Features
-

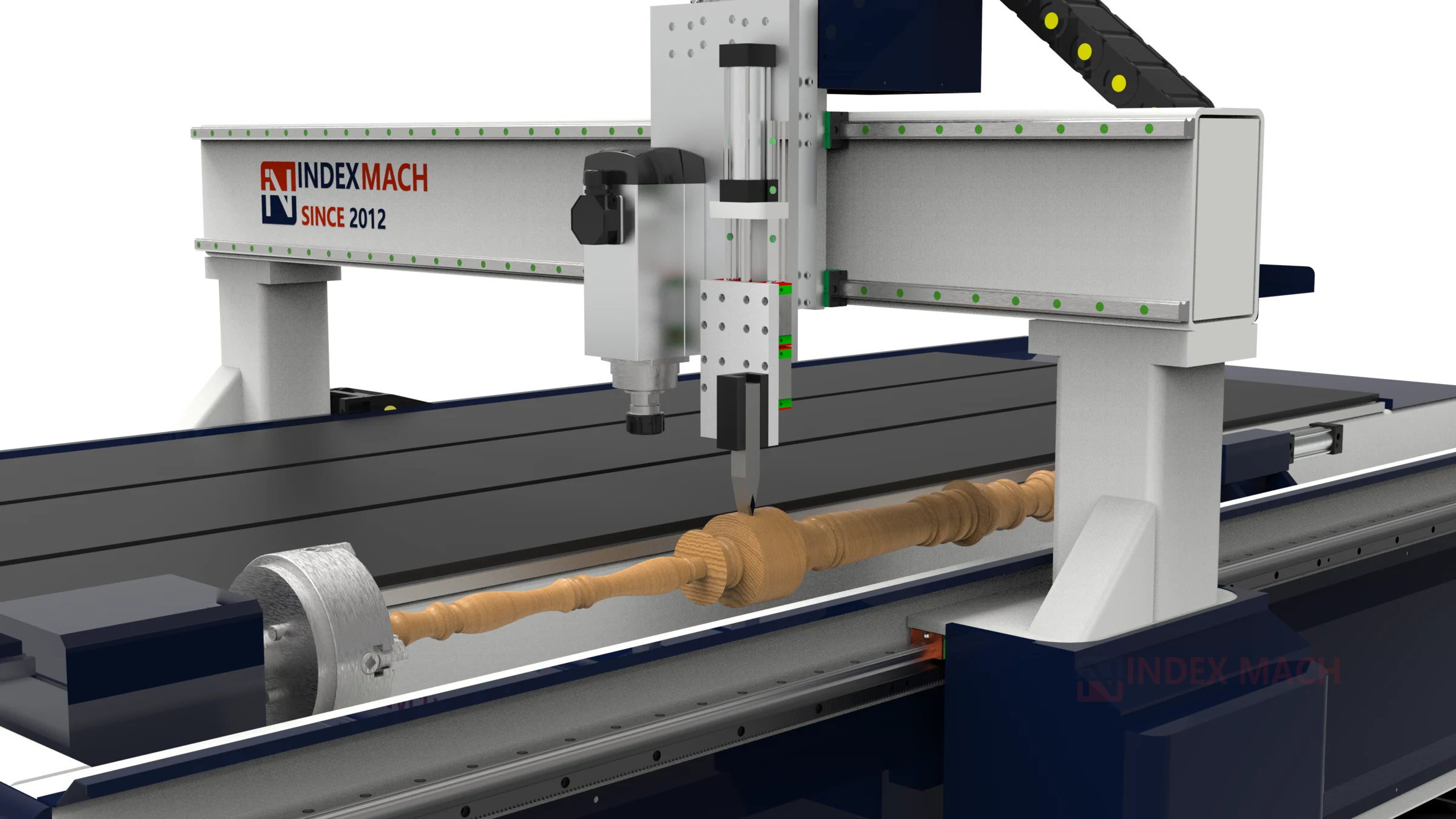

Rotary Turning Axis
A side-mounted rotary axis with a servo-driven chuck and adjustable tailstock holds a blank between centres so the router bit can turn 3D columns, legs, balusters and spindles — no second lathe required.
- Max. Turning Diameter
- 300 mm
- Max. Turning Length
- 2500 mm
- Rotary Speed
- 0 - 120 rpm
-
Spindle Motor
High-frequency air-cooled spindle delivers high torque across the speed range for clean routing on flat panels and smooth finishing on turned parts.
- Power
- 5.5 - 9 kW
- Max. Speed
- 24,000 rpm
-
Control System
Coordinates the X/Y/Z gantry with the rotary 4th axis from one controller, so a single CAD/CAM program can nest, engrave and turn in sequence.
- Axes
- X / Y / Z + Rotary (4-axis)
- Guide Rails
- Taiwan HIWIN 25mm
IMCR-WL1325 Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Max. Turning Length | 2500 mm (98.4 in) | — |
| Max. Turning Diameter | 300 mm (11.8 in) | — |
| Spindle Speed | 0 - 24,000 rpm | — |
| Rotary Speed | 0 - 120 rpm | — |
| Spindle Power | 5.5 - 9 kW (7.4 -12.1 hp) | — |
| Control System | Syntec / DSP | — |
| Drive & Motor | Yaskawa AC Servo | — |
| Working Voltage | AC 380V, 3-Phase, 50Hz/60Hz (Customizable) | — |
| Overall Dimensions | 5200 × 1500 × 1700 mm (204.7 ×59.1 ×66.9 in) | — |
| Net Weight | 2200 kg (4,850 lb) | — |
| Working Area | 1300 × 2500 mm (51.2 ×98.4 in) | — |
| Z-Axis Travel | 200 mm (7.9 in) | — |
| Chuck & Tailstock | Servo chuck with adjustable tailstock | — |
| Max. Rapid Travel Speed | 60 m/min (197 ft/min) | — |
| Guide Rails | Taiwan HIWIN 25mm Linear Square Rails | — |
| Transmission | Helical Rack & Pinion | — |
| Positioning Accuracy | ±0.03 mm | — |
| Repositioning Accuracy | ±0.02 mm | — |
| Air Pressure Required | 0.6 - 0.8 MPa | — |
Specifications are indicative and vary by configuration. Contact us for the latest data sheet.
The IMCR-WL1325 is the router-lathe combo in our CNC wood lathe range — not a standard CNC router.
Machine Features
- Router plus a rotary turning axis (4th axis) in one machine
- Servo chuck and adjustable tailstock for turning between centres
- Heavy welded steel frame for stable high-speed machining
- Compatible with mainstream CAD/CAM and 4-axis rotary toolpaths
- Auto lubrication for low maintenance
Packing List
- 1 × CNC Router-Lathe Combo main unit (IMCR-WL1325)
- 1 × rotary turning axis with chuck and tailstock
- 1 × control system & operation manual (English)
- 1 × standard tooling & accessory kit
- 1 × set of spare wearing parts
- Export-standard plywood case / film + steel-belt fixing
IMCR-WL1325 Frequently Asked Questions
What makes the IMCR-WL1325 a router-lathe combo?
It is a flat-table CNC router with a side-mounted rotary turning axis. The gantry does normal nesting, engraving and 3D relief work on the table, while the rotary chuck-and-tailstock lets the same spindle turn columns, legs, balusters and spindles — two machines' capability in one.
How much does the CNC Router-Lathe Combo IMCR-WL1325 cost?
Pricing typically falls in the $12,800 – $23,600 range depending on spindle power, the rotary axis configuration, tooling and optional accessories. Contact us for a tailored quotation for your production needs.
What is the delivery lead time for the IMCR-WL1325?
Standard configurations usually ship within 15–30 working days after order confirmation. Customised builds may take longer; our sales team will confirm an exact schedule for your order.
Do you provide installation, commissioning and operator training?
Yes. Our engineers provide layout planning, on-site or remote installation, commissioning and operator training, backed by responsive global after-sales support.
What warranty and support are included?
The IMCR-WL1325 comes with a 12-month limited warranty, plus free lifetime technical support for end-users and dealers.
