IMCR-MS1325
Last updated:
IMCR-MS1325 is a 1325 multi-spindle CNC for identical parts at volume on a 1300×2500 table.
- Working Area
- 1300 × 2500 mm (4×8 ft sheet)
- Spindle Power
- 2.2 kW (3 hp)
- Spindle Speed
- 0 - 24,000 rpm
- Max. Workpiece Height
- 200 mm (7.9 in)
- Net Weight
- 1200 kg (2,646 lb)
- Max. Working Size (single head)
- 1300 × 2500 mm (4×8 ft)

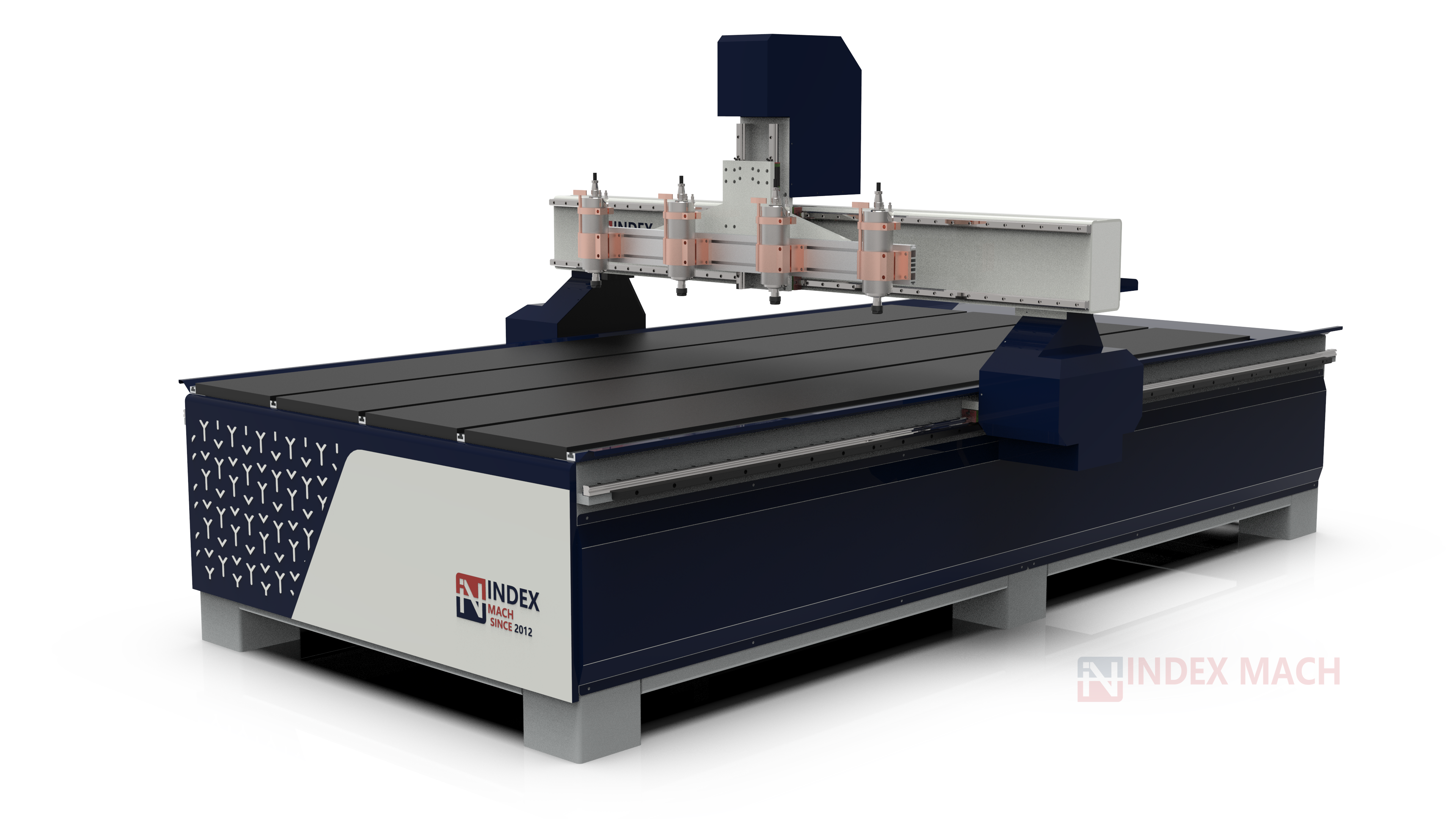

IMCR-MS1325 4×8 multi-spindle CNC router — Main View
Comprehensive evaluation aggregated from design engineers, field-service teams, and global user feedback.
- Electrical & Control Professionalism 5
Branded controls and electrical components deliver stable, professional-grade operation.
- Mechanical Structural Integrity 5
Rigid, well-built structure keeps accuracy stable under continuous production loads.
- Operator Learning Curve 5
Straightforward operation and mainstream software compatibility get operators productive quickly.
- Global Component Availability 4.7
Built around mainstream international components that are easy to source worldwide.
- Continuous Production Efficiency 5
Designed for low-maintenance, round-the-clock production with minimal downtime.
- Cost-to-Value Proposition 5
Export-grade build quality at a competitive price for strong return on investment.
OVERALL PERFORMANCE SCORE 29.7 / 30
IMCR-MS1325 Typical Applications
-
Multi-head furniture carving samples Panel & solid-wood furniture parts
Multi-head batch work on repeating furniture blanks: floral and bird relief door or wall panels, identical ornate planks cut under matched spindles, animal and peacock high-relief inserts, and circular openwork / fretwork — several copies leave the 1325 table in one pass.
- Industry
- Panel & solid-wood furniture
- Typical parts
- Relief door / wall panels, ornate planks, openwork inserts
- Process
- Flat / high relief / openwork
- Materials
- Solid wood / MDF / plywood
-

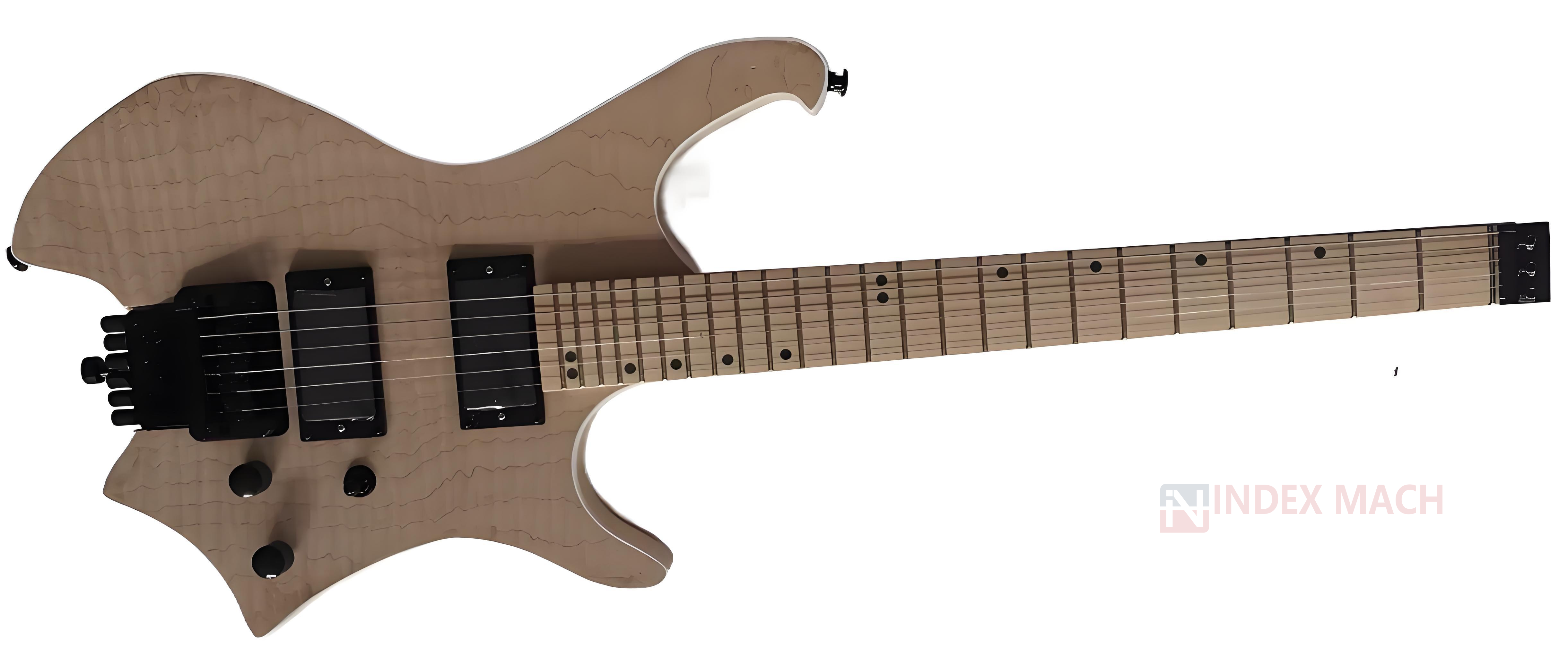

Headless electric guitar blank Headless electric guitar bodies
Solid-wood headless electric guitar blanks: body outline, humbucker pickup pockets, control and switch recesses, and bridge / tuner-system pockets — identical shells run under matched spindles so volume instrument shops finish several bodies per cycle.
- Industry
- Musical instruments
- Typical parts
- Headless electric guitar bodies, pickup / control / bridge pockets
- Process
- Body contour / cavity routing
- Materials
- Solid tonewood (e.g. maple)
-

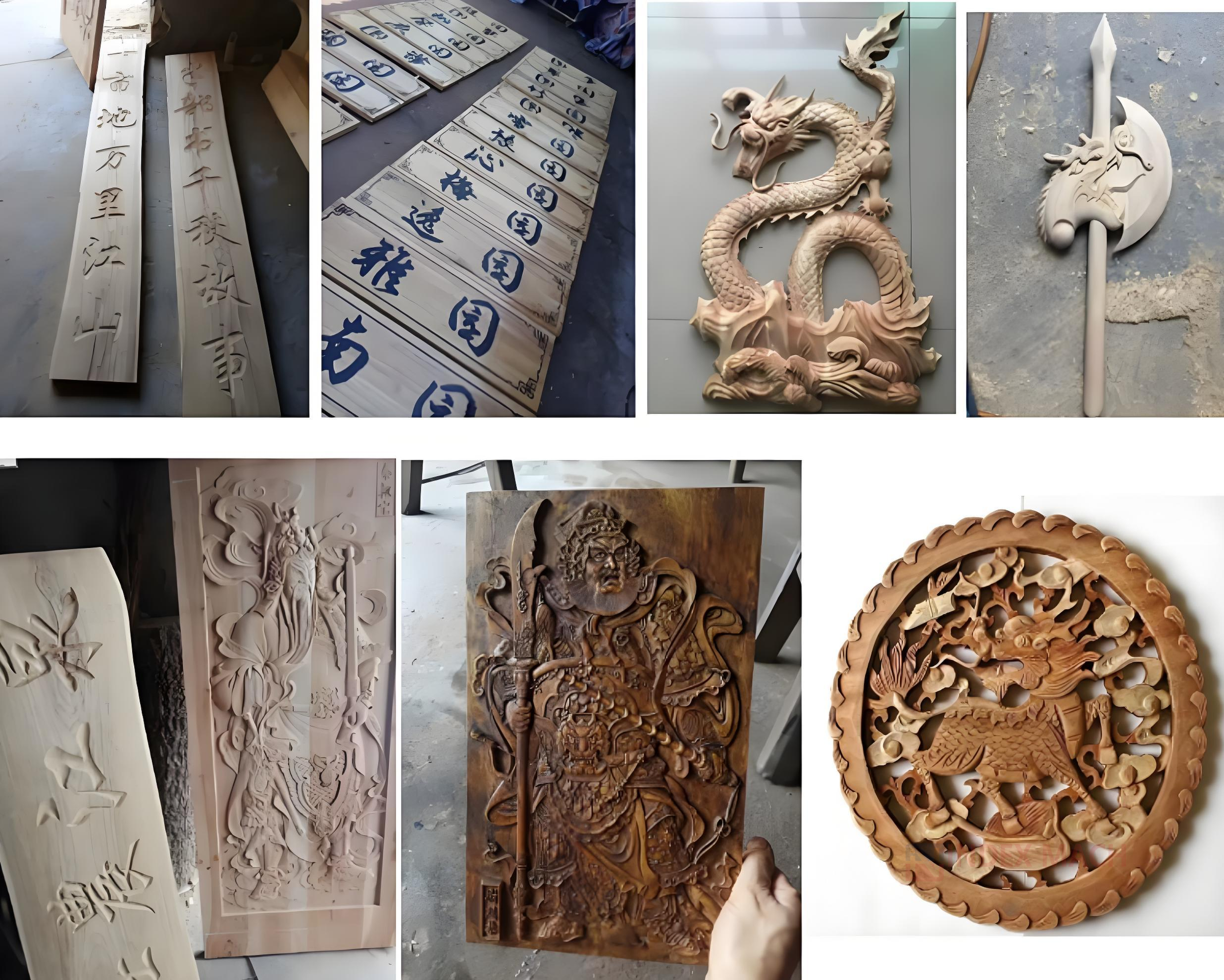

Relief & giftware samples
Plywood housewares parts Crafts, gifts & wooden housewares
Relief wood pictures, jewelry- and tea-box lids, tea trays, picture frames, and wooden toy parts — high-repeat SKUs where multi-spindle pitch beats a single-head carver on cycle time.
- Industry
- Crafts / gifts / housewares
- Typical parts
- Relief wood art, box lids, tea trays, frames, toy parts
- Process
- Relief / contour / shallow carve
- Materials
- Solid wood / MDF / plywood
-
Acrylic signage cutting
Exhibition / décor panels Signage, décor & light-box moulds
Acrylic / PMMA channel letters and logo panels, HDPE / PVC signs, cut-out screens / partitions, and blister (vacuum-form) light-box moulds — flat-sheet and shallow-mould work on the multi-head 1325.
- Industry
- Advertising / decoration
- Typical parts
- Acrylic letters, HDPE/PVC signs, cut-out screens, blister light-box moulds
- Process
- Cut / nest / shallow mould routing
- Materials
- Acrylic / PMMA / HDPE / PVC / tooling board
IMCR-MS1325 Core Components & Features
-
Multi-spindle gantry
Several water-cooled spindles on one gantry cut identical blanks in a single pass. Head count and pitch are set to your blank width on the quote (width × pieces ≈ 1300 mm single-head working width).
- Spindle
- Water-cooled, manual tool change
- Power (each)
- 2.2 kW
- Speed
- 0–24,000 rpm
- Collet
- ER20
- Head count
- Set on quote to blank layout
- Tool setting
- Mechanical spindle height adjuster on each head
-
Control system
Handheld DSP keeps menus simple for operators new to CNC. Accepts mainstream CAD/CAM G-code; we match the post-processor at commissioning.
- Controller
- DSP handheld
- Interface
- Buttons + display screen
- Programs
- G-code / mainstream CAD/CAM
-
Drive, transmission & lubrication
Stepper drives on X/Y/Z give steady, repeatable positioning for high-repeat identical-blank work at a practical cost. Manual oiling covers daily rail and screw care.
- Motors
- Stepper (X / Y / Z)
- X/Y drive
- Rack and pinion
- Z drive
- Ball screw
- Lubrication
- Manual oil pump
-
Frame & workholding
Heavy welded, stress-relieved steel frame keeps the multi-head gantry stable under production loads. Blanks clamp in T-slots or fixtures — no vacuum table — so every spindle sees the same pitch.
- Frame
- Heavy welded steel, stress-relieved
- Workholding
- T-slot / fixture clamps
- Vacuum table
- Not fitted
- Plant air
- Not required
IMCR-MS1325 Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Working Area | 1300 × 2500 mm (4×8 ft sheet) | Machine bed size (X × Y). |
| Max. Working Size (single head) | 1300 × 2500 mm (4×8 ft) | Maximum cutting size when only one spindle is used — full bed X × Y. |
| Max. Working Size (batch) | 300 × 2500 mm (≈ 11.8 × 98.4 in) | Maximum width × length of one part under each spindle in multi-head batch mode (W × L). Head pitch and blank layout are set on the quote. |
| Max. Workpiece Height | 200 mm (7.9 in) | Maximum workpiece height the gantry can accept. |
| Spindle Type | Water-cooled manual tool change | Several spindles cut identical parts in one pass. Head count is set on the quote. |
| Spindle Power | 2.2 kW (3 hp) | Power per spindle in the typical 1325 range. Confirm the build on the quote. |
| Spindle Speed | 0 - 24,000 rpm | — |
| Collet Type | ER20 | ER20 collet on each spindle. |
| Tool Setter | Mechanical spindle height adjuster | Each spindle has its own mechanical height adjuster for tool setting. |
| Control System | DSP | Handheld DSP control — simple menus, quick to learn for operators. We match the post-processor to your CAM at commissioning. |
| Drive Motors & Servos | Stepper motors | Stepper drive on each axis — reliable and cost-effective for repeating identical-blank work. Brand matched at order. |
| Transmission | X/Y rack and pinion, Z ball screw | — |
| Lubrication System | Manual | Manual oil pump — operator oils the rails and screws on a daily schedule. |
| Positioning Accuracy | ±0.03 mm (±0.001 in) | — |
| Dust Collector Power | 3.0 kW (4 hp) | Dust collector is optional — not included in the standard factory package. Order with the machine or add later. |
| Operating Voltage | 380V / 3 Phase, 50/60Hz (Optional 220V/480V) | Built to the plant supply. |
| Air Pressure Required | Not required | No plant compressed-air supply needed for the standard machine. |
| Overall Dimensions | 3050 × 2100 × 1400 mm (120.1 ×82.7 ×55.1 in) | Installed L × W × H of the machine. |
| Net Weight | 1200 kg (2,646 lb) | Machine only, without crate. |
| Container Load (40' HQ) | 16 units | Maximum machines per 40 ft high-cube container when shipped without wooden crates (export packing). |
| Workholding | T-slot / fixture clamps | No vacuum table on this multi-spindle cell — blanks are clamped or fixtured so every head sees the same pitch. |
Specifications are indicative and vary by configuration. Contact us for the latest data sheet.
The IMCR-MS1325 is the 1325 multi-head machine in our multi-spindle CNC router series.
Machine Features
- Multi-head gantry for identical parts in one pass
- Heavy welded steel frame for stable high-speed machining
- T-slot / fixture workholding (no vacuum table)
- Compatible with mainstream CAD/CAM software
- Manual lubrication (daily oiling)
Packing List
- 1 × Multi-Spindle CNC Router main unit (IMCR-MS1325)
- 1 × control system & operation manual (English)
- 1 × standard tooling & accessory kit
- 1 × set of spare wearing parts
- Export-standard plywood case / film + steel-belt fixing
IMCR-MS1325 Frequently Asked Questions
How much does the IMCR-MS1325 multi-spindle CNC router cost?
Pricing for the IMCR-MS1325 1325 multi-head CNC typically falls in the $2,800 – $5,900 range depending on spindle count, tooling and optional accessories (such as the dust collector). Contact us for a quote matched to your blank layout.
What is the delivery lead time for the IMCR-MS1325 1325 multi-head machine?
Standard IMCR-MS1325 configurations usually ship within 15–30 working days after order confirmation. Custom head count or bed size may take longer; we confirm the schedule on the quote.
Do I need on-site installation and training for the IMCR-MS1325?
Usually no. The IMCR-MS1325 is a relatively simple multi-spindle CNC router (DSP control, stepper drives, T-slot / fixture workholding). Most buyers install and learn from our operation videos and English manuals — we do not typically send engineers for on-site install or training. Remote help is available if you get stuck; on-site support can be arranged only when you specifically request it.
What power supply does the IMCR-MS1325 multi-spindle CNC need?
The IMCR-MS1325 runs on AC 380V, 3-phase, 50/60Hz as standard and can be built for 220V or 480V to match your plant. No plant compressed-air line is required for the standard machine.
What warranty and support come with the IMCR-MS1325?
The IMCR-MS1325 multi-spindle CNC router ships with a 12-month limited warranty, plus free lifetime technical support for end-users and dealers.
Is the IMCR-MS1325 an ATC or vacuum nesting CNC router?
No. This model is a multi-head / multi-spindle CNC for identical blanks in one pass — not an ATC CNC router and not a vacuum cabinet nesting cell. Hold-down is T-slot or fixtures; use ATC when one sheet needs many tools, and cabinet nesting when every day is a mixed kitchen cut-list.
What blank size can the IMCR-MS1325 cut in multi-head batch mode?
In multi-head batch mode each spindle handles up to about 300 × 2500 mm (W × L) per blank. With a single spindle in use, the full 1300 × 2500 mm (4×8 ft) bed is available. Head pitch is set to your layout on the quote.
How many spindles should I order on the IMCR-MS1325?
Use the width rule: max workpiece width × pieces per cycle = Max. Working Size (single head) on X — the machine’s max effective working width (1300 mm on the IMCR-MS1325). Example: 300 mm blanks × 4 heads ≈ 1200 mm, which fits the 1300 mm single-head width. Head count is therefore how many identical blanks you process in one pass across that width; send a typical blank drawing and we set pitch on the quote.
Which software works with the IMCR-MS1325 multi-head CNC?
It accepts standard G-code from mainstream panel and nesting CAM. Tool lengths must match across heads; we share setup videos and match a post-processor if you need help at commissioning.
When should I buy an ATC or cabinet CNC instead of the IMCR-MS1325?
Stay on this multi-spindle CNC router when every cycle is the same SKU at volume. Choose ATC CNC routers when the tool list changes mid-program, and cabinet CNC routers for full-sheet kitchen or wardrobe nesting on a vacuum table.
