IMCR-ATC1325
Last updated:
The IMCR-ATC1325 is a 1325 (1300×2500 mm / 4×8 ft) ATC CNC router for nested sheet work. Advertising and exhibition shops cut acrylic, PVC foam, KT and ACM in one program — the 12-tool magazine changes bits so the sheet stays on the table.
- Working Area
- 1300 × 2500 mm (4×8 ft sheet)
- Spindle Power
- 9 kW (12.1 hp)
- Spindle Speed
- 0 - 24,000 rpm
- Z-Axis Travel
- 200 mm (7.9 in)
- Max. Workpiece Height
- 200 mm (7.9 in)
- Net Weight
- 1800 kg (3,968 lb)

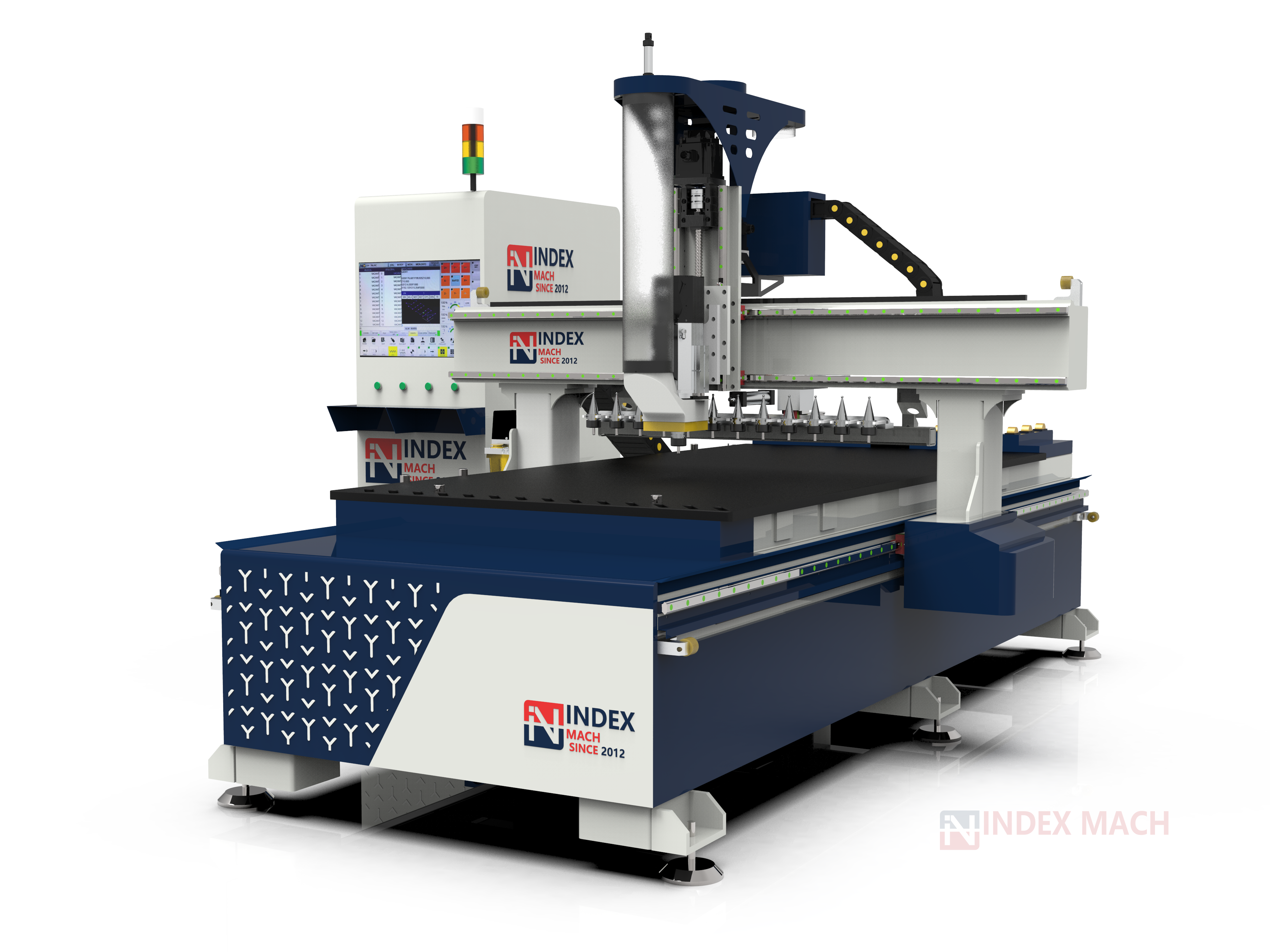

IMCR-ATC1325 4x8 ATC CNC router with tool magazine — Main Front View
Comprehensive evaluation aggregated from design engineers, field-service teams, and global user feedback.
- Electrical & Control Professionalism 4.8
Syntec or LNC industrial control with branded servo drives. This series does not ship a handheld DSP as standard.
- Mechanical Structural Integrity 4.9
Heavy welded steel frame and HIWIN linear rails keep accuracy stable under high-speed loads.
- Operator Learning Curve 4.6
Straightforward interface and CAD/CAM compatibility get operators productive quickly.
- Global Component Availability 4.7
Built around mainstream Taiwanese/Japanese components that are easy to source worldwide.
- Continuous Production Efficiency 4.8
Auto tool change and auto lubrication minimise downtime for round-the-clock production.
- Cost-to-Value Proposition 4.9
Export-grade build quality at a competitive price for high return on investment.
OVERALL PERFORMANCE SCORE 28.7 / 30
IMCR-ATC1325 in Action
IMCR-ATC1325 Typical Applications
-
Acrylic sheet cutting
Exhibition showroom display Signage and exhibition cutting
The 1300×2500 vacuum table holds a full 4×8 acrylic or PVC foam-board sheet for advertising and booth work. The linear ATC swaps cut, finish and lettering tools in one program so light-box panels, channel letters and exhibition placeholder boards leave the table nested. Shut unused vacuum zones on thin KT and foam so the sheet does not walk. This 1325 is a flat-sheet cell — not a 5-axis letter carver and not a kitchen nesting machine.
- Industry
- Advertising / exhibition
- Process
- Cut and nest
- Materials
- Acrylic / PVC foam / KT / ACM / PC / ABS / PP / PE / two-color sheet / MDF
-
Thermofoil cabinet door Cabinet-door programs
The same 12-slot magazine can drill, groove and profile a thermofoil or laminated door skin in one setup. Use this model when the tool list runs the cycle. Full-sheet kitchen and wardrobe carcass nests stay on the IMCR-CB1325 in the cabinet CNC series.
- Industry
- Cabinet doors
- Process
- Drill, groove, profile
- Materials
- Thermofoil / laminated MDF
IMCR-ATC1325 Core Components & Features
-

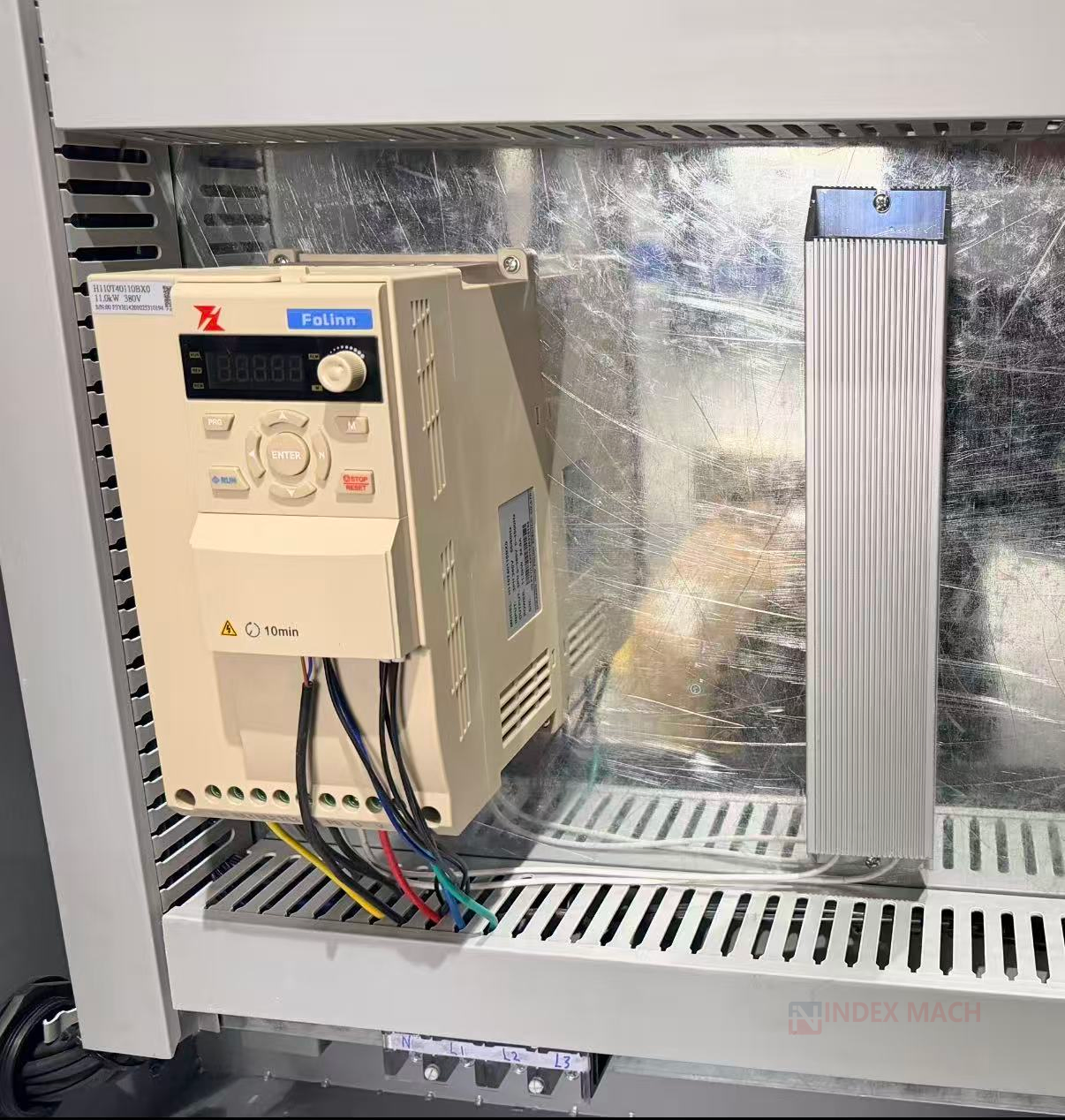

11 kW spindle VFD Spindle VFD with Brake Resistor
The 11 kW VFD holds spindle speed steady under load, with overload protection for round-the-clock routing. The braking resistor is what lets that drive stop hard: it turns the spindle's regenerative energy into heat, so the VFD does not trip on over-voltage, deceleration is shorter and repeatable, and the linear ATC can change tools without a long coast-down.
- Rated Power
- 11 kW
- Protection Rating
- IP20
- Braking
- External braking resistor
- Warranty
- 2 years
IMCR-ATC1325 Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Working Area | 1300 × 2500 mm (4×8 ft sheet) | Bed size for a standard 4×8 ft panel. Specify 1530 / 2040 for oversized boards. |
| Z-Axis Travel | 200 mm (7.9 in) | — |
| Max. Workpiece Height | 200 mm (7.9 in) | Maximum sheet / workpiece height the gantry can accept. |
| Spindle Type | Air-cooled Automatic Tool Changer Spindle | Air-cooled automatic tool-change spindle. |
| Spindle Power | 9 kW (12.1 hp) | Typical ATC range; 9 kW for heavier panel and mixed-material work. |
| Spindle Speed | 0 - 24,000 rpm | — |

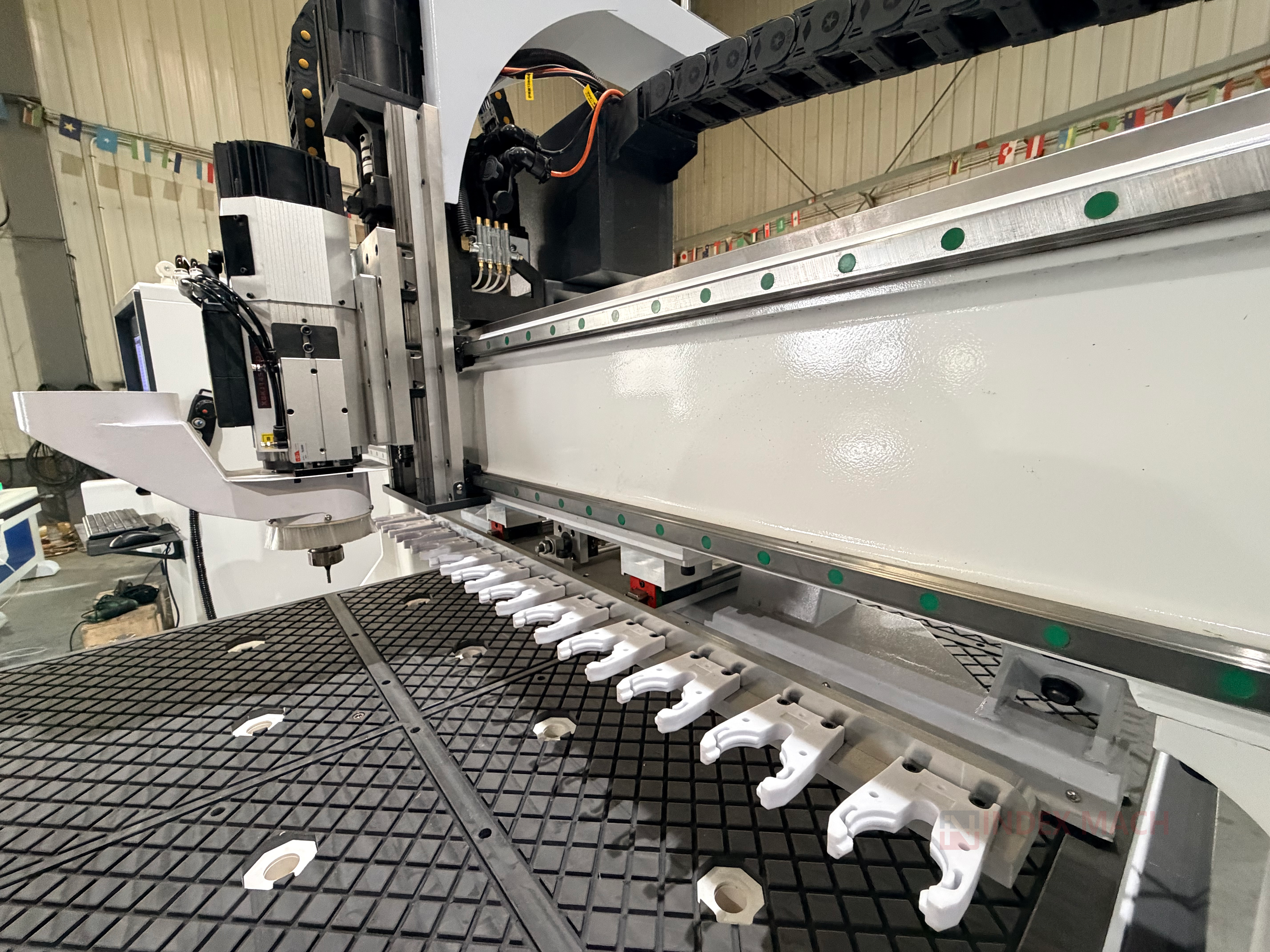

| Tool Magazine Type | Linear ATC | Gantry or rear linear magazine; ISO30 automatic tool change. |

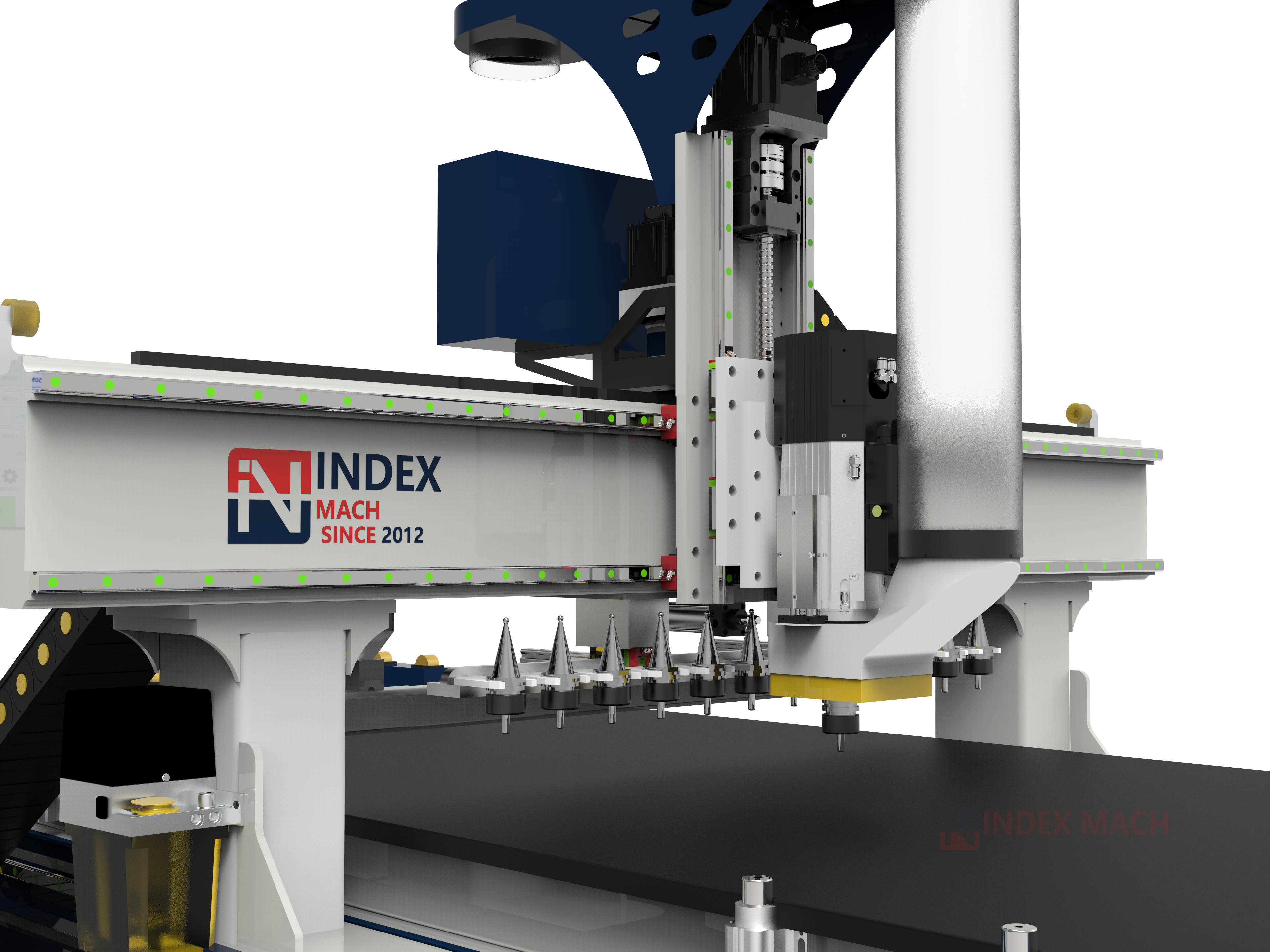

| Tool Capacity | 12 PC | 12-tool linear magazine on this 1325 cell. |
| Tool Holder | ISO30 | — |
| Collet Type | ER32 | — |
| Tool Setter | Automatic | Automatic tool-length measurement before the program. |
| Control System | LNC | Optional Syntec or LNC. We match the post-processor to your CAM. |
| Drive Motors & Servos | Leadshine AC Servo | — |
| Guide Rails | Taiwan HIWIN Linear Square Rails | — |
| Transmission | X/Y helical rack and pinion, Z ball screw | — |
| Lubrication System | Automatic | Standard automatic oiling on this ATC cell. |
| Positioning Accuracy | ±0.03 mm (±0.001 in) | — |
| Repositioning Accuracy | ±0.02 mm (±0.001 in) | — |
| Max. Rapid Travel Speed | 60 m/min (197 ft/min) | — |
| Vacuum Zones | Zoned vacuum table | Independent zone control concentrates suction on smaller parts during heavy cutting. |
| Dust Collector Power | 5.5 kW (7.4 hp) | — |

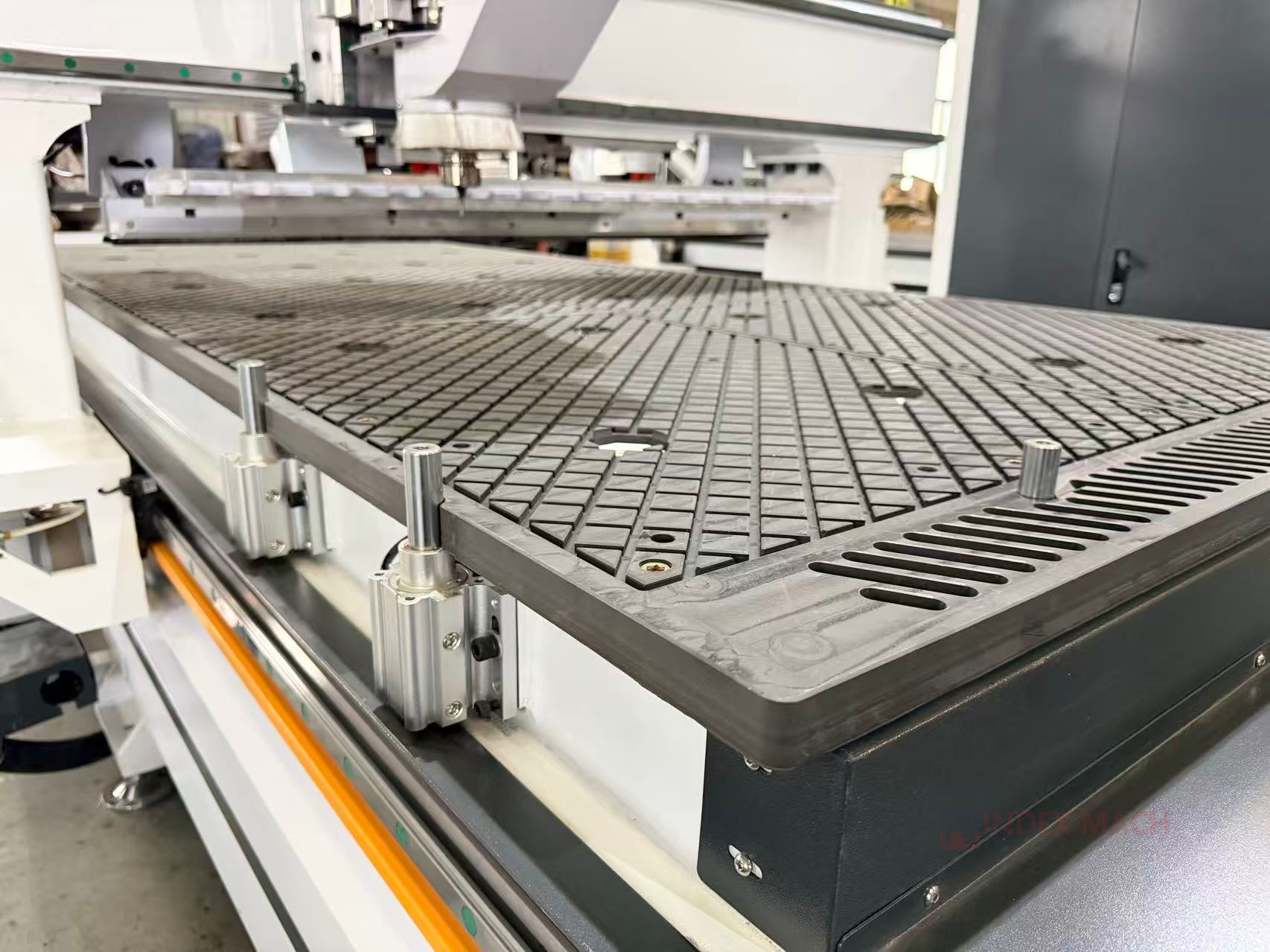

| Panel Positioning | Pneumatic locating pins | Squares a 4×8 sheet quickly and repeatably on the vacuum table. |
| Operating Voltage | 380V / 3 Phase, 50/60Hz (Optional 220V/480V) | Customizable to match the plant supply. |
| Air Pressure Required | 0.6 - 0.8 MPa (87 -116 psi) | — |
| Overall Dimensions | 3050 × 2200 × 2100 mm (120.1 ×86.6 ×82.7 in) | Installed L × W × H of the machine. |
| Net Weight | 1800 kg (3,968 lb) | Machine only, without crate. |
  | ||
Specifications are indicative and vary by configuration. Contact us for the latest data sheet.
The IMCR-ATC1325 is IndexMACH’s 1325 (1300×2500 mm / 4×8 ft) ATC CNC router — a linear-magazine CNC router for nested sheet work. Advertising and exhibition shops use the 12-tool changer to cut, finish and letter a full 4×8 acrylic or foam-board sheet in one program, instead of stopping to swap bits by hand.
The zoned vacuum table and pneumatic positioning pins locate light display boards as well as denser ACM and MDF. Typical materials include acrylic, PVC foam, KT board, ACM, PC, ABS, PP, PE, two-color sheet and MDF. Syntec or LNC control accepts G-code from mainstream CAD/CAM; we match the post-processor at commissioning. Layout, installation and operator training ship with the machine, with after-sales support for end-users and dealers.
Is the IMCR-ATC1325 right for this shop?
Yes if one 4×8 program needs several tools (cut, finish, letter, drill, groove, profile) and stopping to change bits by hand costs the shift. Typical buyers: advertising and exhibition shops, and door programs that share this magazine layout.
No if almost every nest is a kitchen or wardrobe carcass — buy the IMCR-CB1325 in the cabinet CNC series instead. Angled or 3D multi-face letters need a 5-axis CNC router, not this flat table.
Machine Features

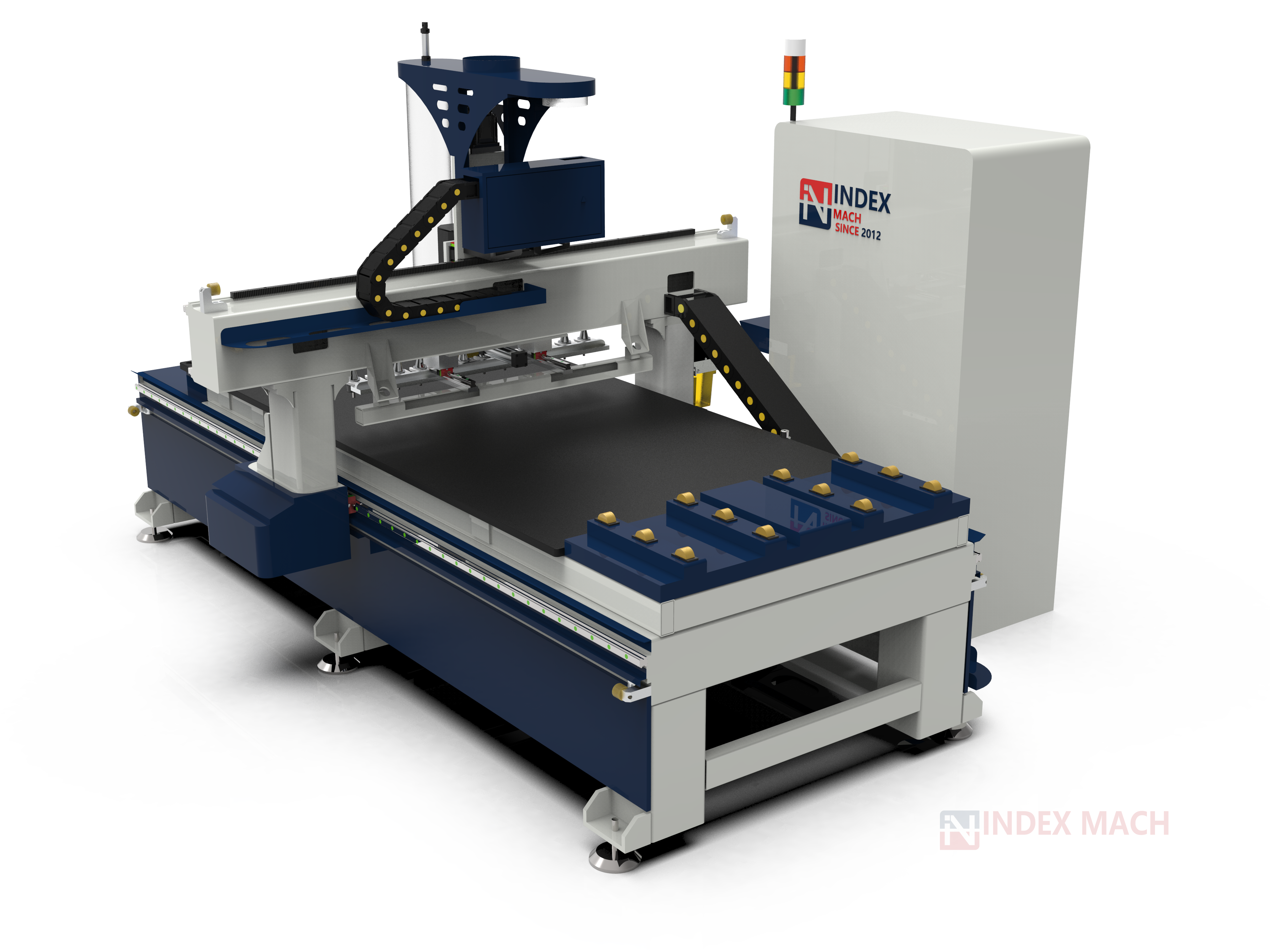

- Heavy welded steel bed for high-speed 4×8 sheet work
- 12-slot linear ATC magazine — cut, finish and lettering tools in one program
- Zoned vacuum table with pneumatic positioning pins for repeatable sheet location

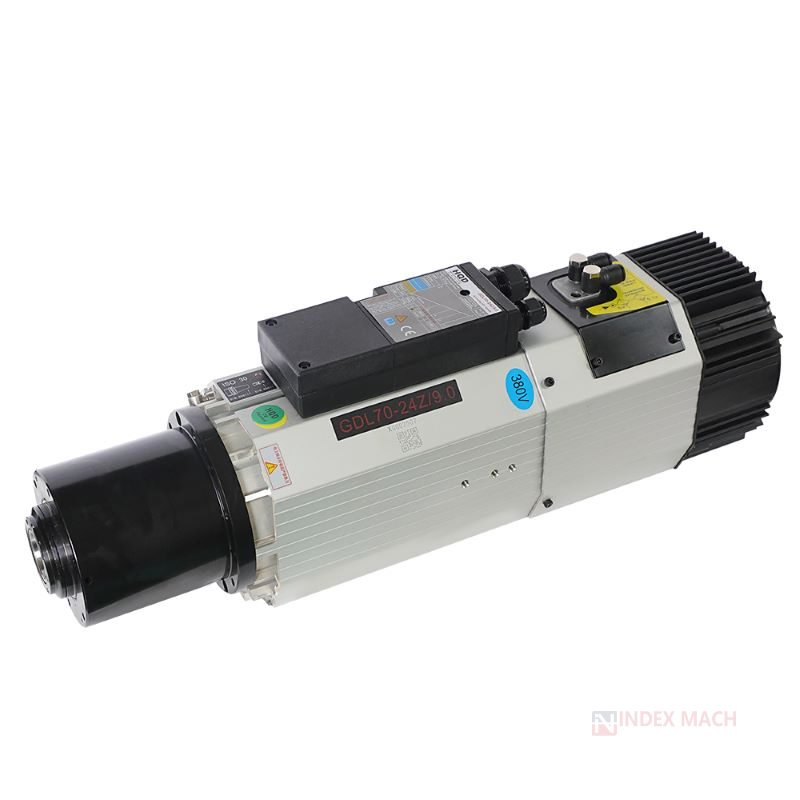

- Air-cooled 9 kW ATC spindle, 0–24,000 rpm
- Syntec or LNC control, Leadshine AC servos, HIWIN linear rails
- Auto lubrication for continuous shifts
Packing List
- 1 × IMCR-ATC1325 main unit
- 1 × control system and English operation manual
- 1 × standard tooling and accessory kit
- 1 × set of spare wearing parts
- Export plywood crate / film with steel-belt fixing
IMCR-ATC1325 Frequently Asked Questions
How much does the IMCR-ATC1325 cost?
Pricing for the IMCR-ATC1325 typically falls in the $8,900 – $21,000 range depending on spindle, magazine, control and options. Ask for a quote with your sheet size and tool list.
What sheet size and jobs does the IMCR-ATC1325 run?
The table is 1300×2500 mm (4×8 ft). Sign and exhibition shops nest acrylic, PVC foam, KT, ACM and similar display boards; the 12-slot linear magazine changes cut, finish and lettering tools in one program. For dedicated kitchen nesting, see cabinet CNC routers.
What spindle and tool magazine does the IMCR-ATC1325 use?
An air-cooled 9 kW ATC spindle (0–24,000 rpm) with a 12-slot linear magazine. This ATC CNC router does not use a disc changer. Send the tool list if you need a different slot count.
What power supply does the IMCR-ATC1325 require?
Standard is 380V / 3-phase, 50/60 Hz. 220V and 480V are available to match the plant supply.
What is the delivery lead time for the IMCR-ATC1325?
Standard 1325 configurations usually ship within 15–30 working days after order confirmation. Custom bed, magazine or voltage builds may take longer; sales will confirm the date on the order. Layout, on-site or remote commissioning and operator training are included.
What warranty and support are included?
The IMCR-ATC1325 ships with a 12-month limited warranty, plus free lifetime technical support for end-users and dealers.
How is the IMCR-ATC1325 different from the IMCR-CB1325?
The IMCR-CB1325 is the 4×8 kitchen and wardrobe nesting cell — ATC is there so the nest can cut, drill and groove box parts. This IMCR-ATC1325 is the 4×8 ATC CNC router for sign, exhibition and multi-tool door programs, where the tool list — not the furniture cut-list — sets the day.
Will thin foam or KT board hold on the IMCR-ATC1325?
Yes, if you shut unused vacuum zones and use the pneumatic pins. Thin sheet that leaks air will walk; we map zones at commissioning. Very 3D letters still need a fixture — this model is a flat-sheet ATC cell, not a 5-axis carver.
Can the IMCR-ATC1325 cut 5-axis letters or kitchen carcass nests?
No. Angled or multi-face letters belong on a 5-axis CNC router. Dedicated kitchen and wardrobe nesting belongs on cabinet CNC routers. This 1325 stays on flat multi-tool sheet work.
